Product Features:

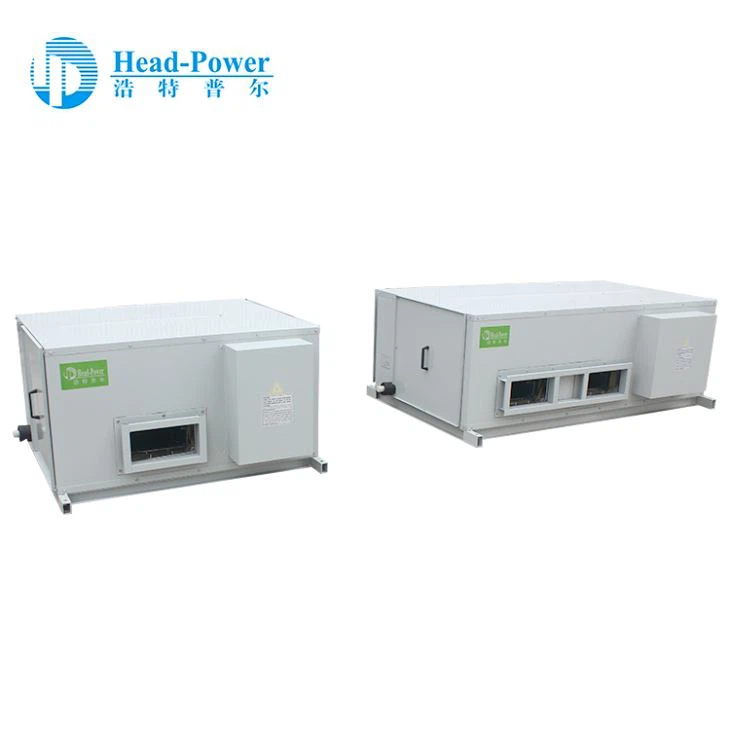

Marine refrigerating plant packaged unit specially designed for use in marine and offshore installations,these unit can be used for all kinds of small capacity air conditioning requirements.
Marine refrigerating plant packaged unit has standard stainless steel, using rivet stainless steel metal structure, and nickel-copper coaxis tube as heat exchanger for sea water side. The fan duct can be roted as required when you install it. The fan blower has advantage such as high static pressure, big air flow and low noise. Marine refrigerating plant packaged unit has the maximum compact design and better performance. As customer required, we can also provide D-smart control PCB with soft-start function to minimize the starting current.
1.Cooling coil for direct expansion
2.High efficiency centrifugal fan
3.Hermetic reciprocating compressor with heating elements and low sound generation
4.A cleanable shell and tub condenser with 90/10 Cu/Ni tubes is used for sea water and a cast iron shell and Cu tub condenser for freshwater,Cu/Cu air cooled for condenser
5.Thermostatic temperature control
6.Standard refrigerant R410a,R407c and R134a,other refrigerants on request
Technical Specification:
Sea-water cooled Package Unit(Water-Air) | |||
Model NO. | MWL | ||
Cooling capacity | kW | 19-258 | |
Power supply | 220V~380V/3PH/50-60Hz | ||
Fan data | Air flow | m3/h | 1600~38500 |
External static pressure | Pa | 80-850 | |
Noise level | dB(A) | 50~73 | |
Motor power | kW | 0.3~22 | |
Refrigerant | Type | R22/R407c/R410a | |
Compressor | Type | Type | Hermetic Scroll |
Rated power | kW | 2.25~66 | |
Water side heat exchanger | Type | Type | Alpaka & SS316 Tube plate & end cap Shell and tube |
Water flow | m3/h | 2.3~42 | |
Water pressure drop | mH2O | 2.3~6.3 | |
Pipe connection | in/mm | DN25/32/40/50/65 | |
Air side heat exchanger | Type | Copper tubes with aluminium fins or copper fins | |
Unit Dimensions | L*W*H | mm | 750x550x1600~3500x1700x2000 |
Note: | |||
1. Nominal cooling condition: indoor air temperature 27℃DB/19.5℃WB; seawater inlet/outlet temperature 32℃/37℃. | |||
FAQ:
Q1：What's the terms of delivery?
A1：EXW, FOB, CFR, CIF.
Q2: What types of payment do you accept?
A2：We accept T/T, L/C, more pay channels are open. 30% Deposit, 70% balance should be paid before shipment.
Q3：What is your company's after-sales service?
A3: Our warranty period is one year. If there is any problem in this year, we will send you the new parts for replacement. Meanwhile, welcome to consulting the technical knowledge.
Q4: How about the delivery time?
A4: About 25-30 days after the receipt of deposit and confirmation on all designs based of normal condition.
