Product Features:

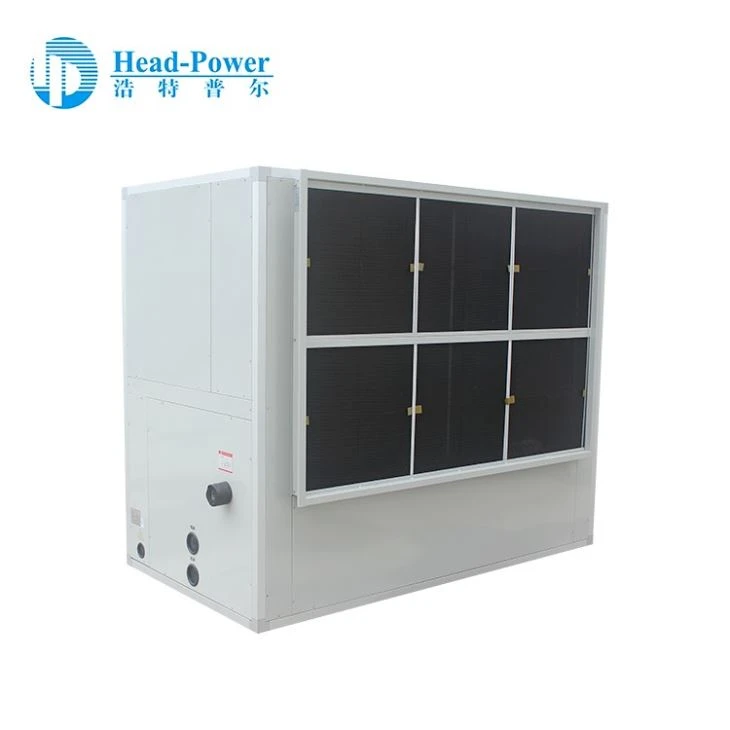

Yacht Scroll Marine Water Cooled Air Conditioning is low noise design, reliable run, anti corrosive and complete protections, small volume and light weight, Sea Water Proof & Anti-Vibration; The fan duct can be roted as required when you install it.The fan blower has advantage such as high static pressure, big air flow and low noise. This self-contained unit has the maximum compact design and better performance. Indoor Unit can be Cabinet, Ceiling, Ceiling Floor and Duct Type which can be determined by the clients. Air cooled condenser with copper tube copper fin, inner high efficient tube. Yacht Scroll Marine Water Cooled Air Conditioning with well-known brands electronic components. Yacht Scroll Marine Water Cooled Air Conditioning with Danfoss expansion valves, SUS 304 material of casing and base.

Technical Specification:

Sea-water cooled Package Unit(Water-Air)
Model NO.	MWL
Cooling capacity	kW	19-258
Power supply		220V~380V/3PH/50-60Hz
Fan data	Air flow	m³/h	1600~38500
External static pressure	Pa	80-850
Noise level	dB(A)	50~73
Motor power	kW	0.3~22
Refrigerant	Type	R22/R407c/R410a
Compressor	Type	Type	Hermetic Scroll
Rated power	kW	2.25~66
Water side heat exchanger	Type	Type	Alpaka & SS316 Tube plate & end cap Shell and tube
Water flow	m³/h	2.3~42
Water pressure drop	mH₂O	2.3~6.3
Pipe connection	in/mm	DN25/32/40/50/65
Air side heat exchanger	Type	Copper tubes with aluminium fins or copper fins
Unit Dimensions	LWH	mm	750x550x1600~3500x1700x2000
Note:
1. Nominal cooling condition: indoor air temperature 27℃DB/19.5℃WB; seawater inlet/outlet temperature 32℃/37℃.
