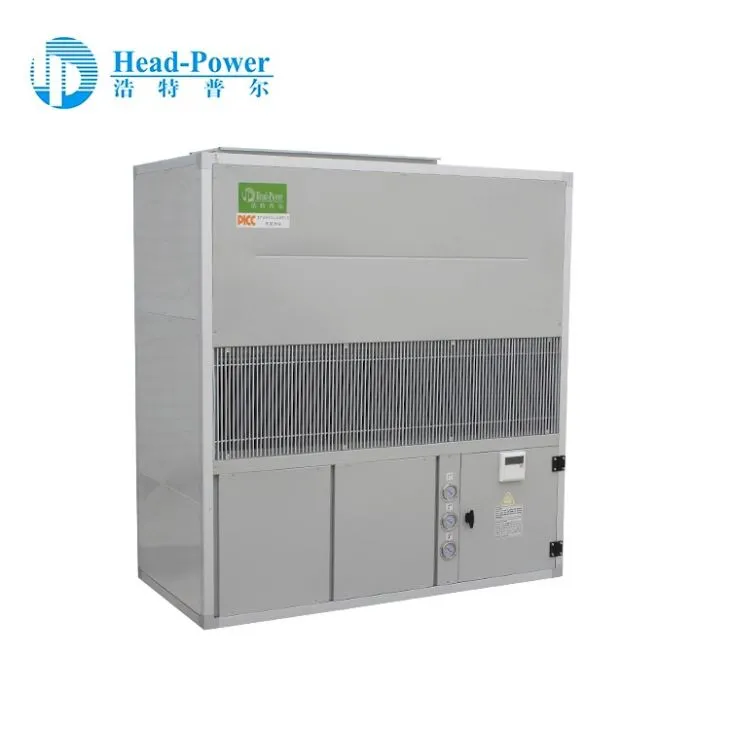

Vessel marine seawater cabinet air cooler

It is consist of DC inverter compressor, control box, sea water condenser, evaporator, centrifugal fan, 4-way reversing valve, etc. It is with compact structure for easily installation and maintenance, it can be installed under the ambry, berth or other enclosed spaces in the cabin and supply the cooling air to everywhere by using a flexible air duct and grilles.

Send Inquiry

Chat Now

Product Features:

Vessel marine seawater cabinet air cooler is the approved product of unitary air conditioner for each vessel. It not only has technical requirements and advantages of all kinds of unitary air conditioner, but also increases ex-proof and anti-proof function through professional measurements and accessories. Vessel marine seawater cabinet air cooler is the necessary equipment which can make sure of the big important equipment and life safety and creating comfortable working environment. Vessel marine seawater cabinet air cooler is widely used in platform, ships, chemical engineering, oil, coal mine, machinery, medicine, metallurgy which exist flammable and combustible gas and need a certain temperature requirements, such as control room, laboratory, arm-shop, and explosive magazine.

Technical Specification:

Sea-water cooled Package Unit(Water-Air)
Model NO.	MWL
Cooling capacity	kW	19-258
Power supply		220V~380V/3PH/50-60Hz
Fan data	Air flow	m³/h	1600~38500
External static pressure	Pa	80-850
Noise level	dB(A)	50~73
Motor power	kW	0.3~22
Refrigerant	Type	R22/R407c/R410a
Compressor	Type	Type	Hermetic Scroll
Rated power	kW	2.25~66
Water side heat exchanger	Type	Type	Alpaka & SS316 Tube plate & end cap Shell and tube
Water flow	m³/h	2.3~42
Water pressure drop	mH₂O	2.3~6.3
Pipe connection	in/mm	DN25/32/40/50/65
Air side heat exchanger	Type	Copper tubes with aluminium fins or copper fins
Unit Dimensions	LWH	mm	750x550x1600~3500x1700x2000
Note:
1. Nominal cooling condition: indoor air temperature 27℃DB/19.5℃WB; seawater inlet/outlet temperature 32℃/37℃.

marine contained air conditioning

marine floor standing packaged

self contained marine air conditioning

10tr marine package air conditioner

FAQ:

Q1：I want to known more information, how can I contact with you?

A1：I am Angie Pan. 24hour contact mobile/wechat is: +86 13630004922. You can directly contact me see above namecard.

Q2: What types of payment do you accept?

A2：We accept T/T, L/C, more pay channels are open. 30% Deposit, 70% balance should be paid before shipment.

Q3：How about the quality of your product?

A3: Our products strictly manufatured according to national and international standard. We got ISO quality and CE,CCS,SGS…etc.

Q4: How about the delivery time?

A4: About 25-30 days after the receipt of deposit and confirmation on all designs based of normal condition.
