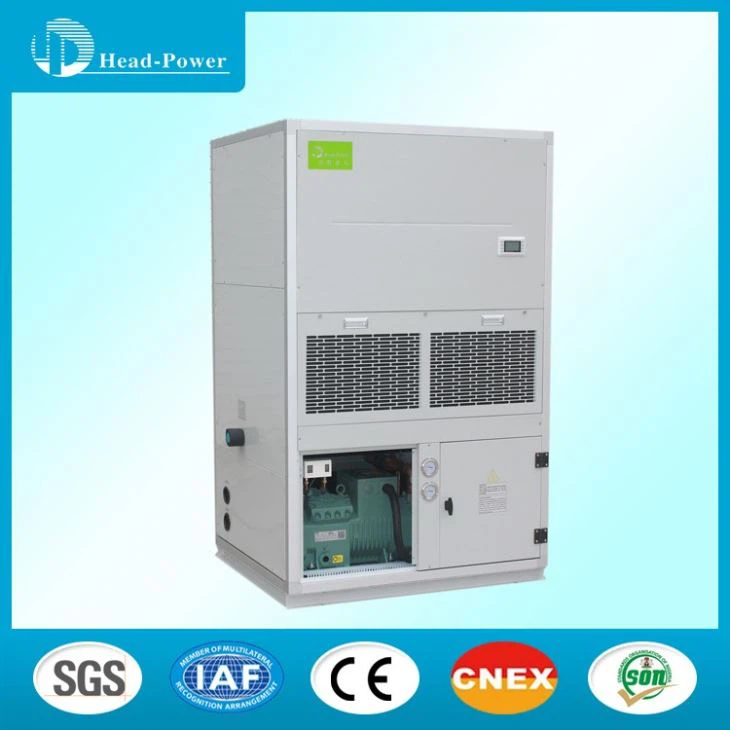

25kw marine packaged air conditioner
Headpower's cabinet conditioner has compact and graceful looking. It is designed for is for isolating rooms from main HVAC system eg. engine control room,engine workshop, switch board room and galley etc.therefore this unit contains all components including electric controls. It can be installed with heaters and humidifiers. We have kinds of air flow connection models, and the elegant appearance of unit will compliment the interior of passenger s ships.
1: Mainly composed of compressor, condenser, direct evaporator, expansion valve, fan and so on.
2: Be equipped with full hermetic refrigeration compressor of world-famous brand.
3: Key controlling parts are imported name brand
4: Condener applies aluminum cooper tube, B10/B30 cooper nickel tube with high corrosion resistance and uses special structure, it can protect ship swing from flow-stop
5: Pressure test, vacuum test and running test have been done before leaving factory
6: After being installed pipe, then charge in feron, once connect to current, then it can be put into use
7: Match proper direct end device to form a full system
8: Design, manufacture and inspection of this series of product as per user's requirement
| Marine Air Conditioner | ||||
| Model No. | MWL090 | |||
| Unit performance | Cooling capacity | kW | 25 | |
| Air flow | m3/h | 4000 | ||
| External static pressure | Pa | 200 | ||
| Noise level | dB(A) | <58 | ||
| Power supply | 440V/3PH/60Hz | |||
| Refrigerating system | Compressor | Type | Hermetic scroll type | |
| Power | kW | 6.5 | ||
| Condenser | Type | shell and tube type(sea water) | ||
| Water flow | m3/h | 5.5 | ||
| Water pressure drop | mH2O | 30 | ||
| Connecting pipe | mm | 40 | ||
| Evaporator | Type | copper tube and aluminum fin | ||
| Refrigerant | Type | R22 | ||
| Volume control | expansion valve | |||
| Air supply system | Blower | Type | Low-noise centrifugal | |
| Driving method | directly drive | |||
| Motor | Power | kW | 1.1 | |
| Unit Dimensions | L*W*H | mm | 1250*600*1600 | |

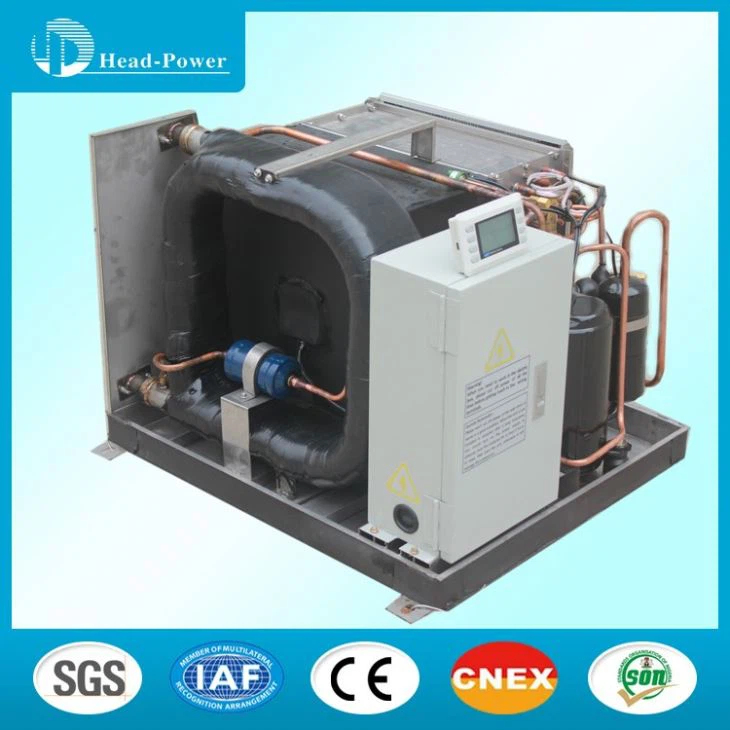

Whenever three or more independent areas in a yacht need to be air-conditioned, a central chiller system is the right choice. The system features one central control unit and a separate control panel for each cabin.
Featuring a compact base design, these modules can be staged to provide a larger system which is easily retrofitted and staged in the field. Unaffected by vibration, moisture or ambient temperatures up to 140 °F/60 °C, these condensing units can be installed in any convenient location.
marine water chiller is the main equipment of chilled (heating medium) water AC system, it takes environment friendly refrigerant as cooling medium, to make chilled (heating) circulating water and supply to AC terminals, chilled (heating) water is pumped into heat exchange coil by water pump and conduct heat exchange with air, thus realize the purpose of cooling and dehumidification in summer, heating in winter.
Featuring a compact base design, these modules can be staged to provide a larger system which is easily retrofitted and staged in the field. Unaffected by vibration, moisture or ambient temperatures up to 140 °F/60 °C, these condensing units can be installed in any convenient location.
Your advantages
· Scroll compressors for heavy duty applications
· Multiple compressor units:
- modulating cooling output
- low starting surge
- high system availability
Many customization options with different electronics, tropical versions, vibration damping and many other features
