Guangdong Head-Power Air-Conditioning Co., Ltd. is one of the leading manufacturers and suppliers of 20ton industrial water cooled chiller in China, also supports customized service with low price. If you're going to buy advanced 20ton industrial water cooled chiller made in China, welcome to get quotation from our factory.

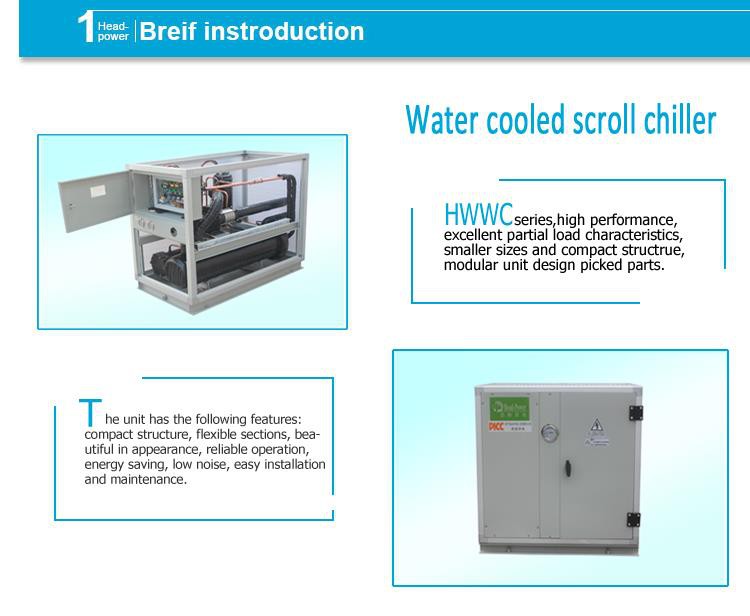

20ton industrial water cooled chiller
Features
1.International famous factory original installed fully closed compressor unit, circulation pump, advanced performance, reliable quality.
2.Special relays, protectors, capacitors and refrigerating parts for refrigeration units are imported original high-quality components.
3.LCD screen temperature display, microcomputer temperature control, simple operation, eye-catching.
4.The circulation system adopts anti-corrosion materials, with anti-rust, anti-corrosion, anti-cryogenic liquid pollution function.
5.It has the occasion of energy saving, lack of water source, poor water quality and water pressure, which can prevent the circulating water from scaling and pollution, and effectively protect the normal operation of large precision instruments and equipment under the bad working environment conditions in high-temperature areas.
6. All models of the machine can be reasonably matched between low temperature and refrigerating capacity, low temperature and container quantity according to user's requirement.
| Model NO. | HWWC25 | ||
| Cooling capacity | ton | 20 | |
| Power supply | 380V/3PH/50Hz | ||
| Refrigerant | R410A | ||
| Compressor | Type | Hermetic scroll compressor | |
| Power input | kW | 9*2 | |
| Safety measures | High&low pressure switch, internal overload protector, insufficient water protector,etc. | ||
| Evaporator | type | Shell and tube type | |
| inlet/outlet water temp. | ℃ | 12/7℃ | |
| water flow | m3/h | 12.5 | |
| water pipe | DN | 50 | |
| Condenser | type | Shell and tube type | |
| inlet/outlet water temp. | ℃ | 30/35℃ | |
| water flow | m3/h | 15 | |
| water pipe | DN | 50 | |
| Unit Dimensions | L*W*H | mm | 2100*1200*1500 |
1.Famous brand new compressors ,high efficient shell condensers and evaporators – excellent cooling, quiet with lowelections consumption.
2.P.I.D.Microprocessor control – easy to operate, accurately maintains temperature range from 3℃ to 50℃.
3.Special open type reservoir tank with stainless steel – rays to clean and maintain.
4.Well designed and reasonable Pipelines-ensures power supply and saves energy.
5.Current-overload protector, high-and-low pressure switches, electronic time delayer, fault display system – Safe and durable.
6.Liquid crystal display showing temperatures of outlet and inlet chill water-provides visualized and direct setting.
7.Single, double or quadruple compressors combination available – economical and efficient.
8.Industrial designed – elegant and economical with friendly human – machine connections.
Industrial Chillers are widely used in many industries like plastic and rubber manufacturing, electronic productions, electroplating ,medical chemistry, ultrasonic cooling and printing business, etc. It could accurately provide needed temperature for modern industrial manufacturing and largely improve efficiency and product quality. Xiecheng Industrial Chillers are with simple operation, reasonable design and superior quality with more than one hundred different models, which are the best choice for modern industries.
