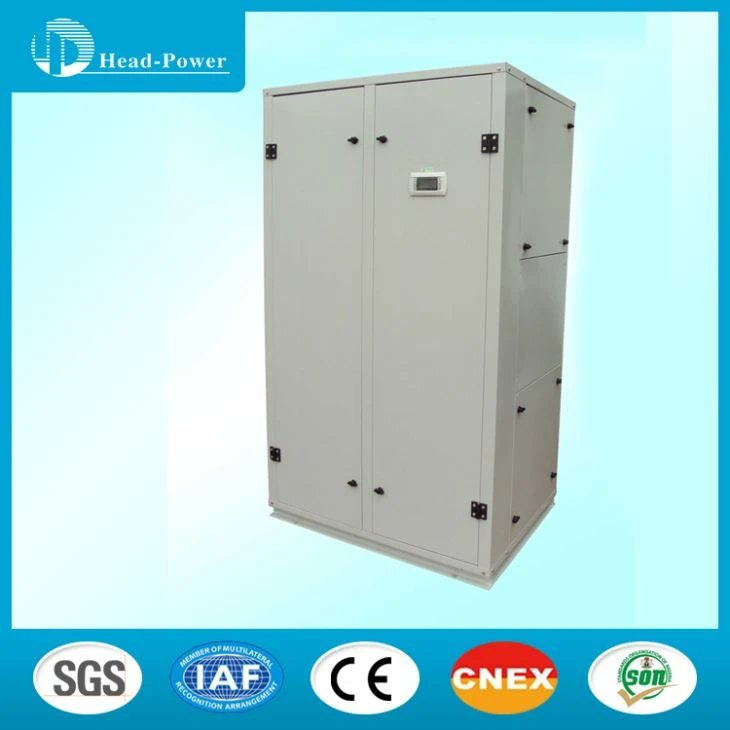

HVAC System Precision Air Conditioner Unit

Both supply fan and exhaust fan are built inside to bring in fresh air and exhaust out the stale indoor air as well, thus to keep indoor space in natural comfort. Built-in heat exchanger (rotary heat exchanger or plate heat exchanger) transfers energy contained in the outgoing indoor air to the coming fresh air, thus fresh air is pre-cooled or preheated. Various functional sections such as filter section, cooling/heating section, humidifying section etc. can be combined together to meet different air treatment requirements.

Send Inquiry

Chat Now

Working principle:

HVAC System Precision Air Conditioner Unit can control temperature range between18℃~32℃, humidity control range of 40%~80% need constant temperature and humidity of the use of places, such as grain planting library, Development Film library and special products such as precious cultural preservation. We can according to the different needs of customers, to provide customers with a variety of personalized services, so well received by the market.

Technical specification:

Room precision air conditioner
Model No.		JH/JHF
Unit Performance	Cooling Type		Water-cooled/Air-cooled
Cooling capacity	kW	6.71~146
Electric heating capacity	kW	4.5~56
Cooling consumed power	kW	2.7~50.3
Air flow	m³/h	2200~34000
External static pressure	Pa	30~80
Power supply		220/380/460V-3N-50/60Hz
Refrigerant		R22/R407c/R410a
Indoor unit	Fan	Fan way		Upper/Front/Down supply
Motor power	kW	0.18~11
Humidification	Humidifying	Kg/h	4~25
Power	kW	3.7~18.75
Noise level	dB(A)	≤53~72
Model No.		SW
Outdoor unit	Compressor	Type		Rotor/Scroll
Power	kW	2.25~36
Condenser type		Copper tube aluminum fins
Blower power	kW	0.37~4.4
Noise level	dB(A)	＜62~69
Connection tube	Gas tube(mm)	Φ12.7/Φ15.9/Φ19.1
Quantity	1~5
Liquid tube(mm)	Φ9.52/Φ12.7
Quantity	1~5
Connection	Flare opening
Note:
1. Return air vent are equipped with G4 air filter.
2. Control temperature range between 18-32℃,accuracy of ±0.5℃
3. Humidity control range of 40~80%, with an accuracy of ± 3%
4. Compressors are put indoor units.

air cooled precision air conditioner

water cooled precision air conditioner

computer room precision air conditioner

data center precision air conditioner

telecom precision air conditioner

split precision air conditioner

FAQ:

Q1：Are you a manufacturer or trading company?

A1：We are a manufacturer which specialized in produce HVAC product since 2001.

Q2：What is your company's after-sales service?

A2：Our warranty period is one year. If there is any problem in this year, we will send you the new parts for replacement. Meanwhile, welcome to consulting the technical knowledge.

Q3: How about the quality of your product?

A3: Our products strictly manufatured according to national and international standard. We got ISO quality and CE,CCS,SGS…etc.

Q4：What types of payment do you accept?

A4：We accept T/T, L/C, more pay channels are open. 30% Deposit, 70% balance should be paid before shipment.
