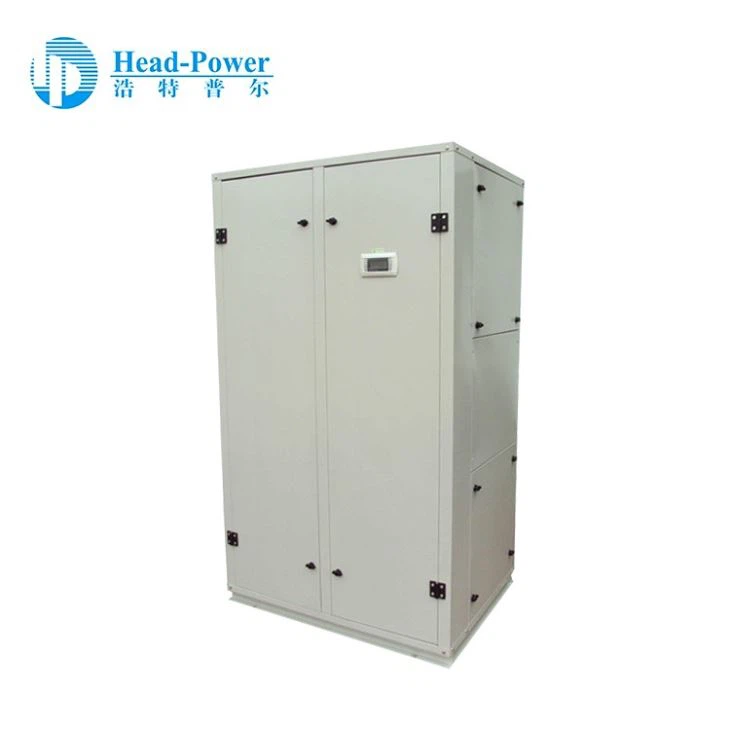

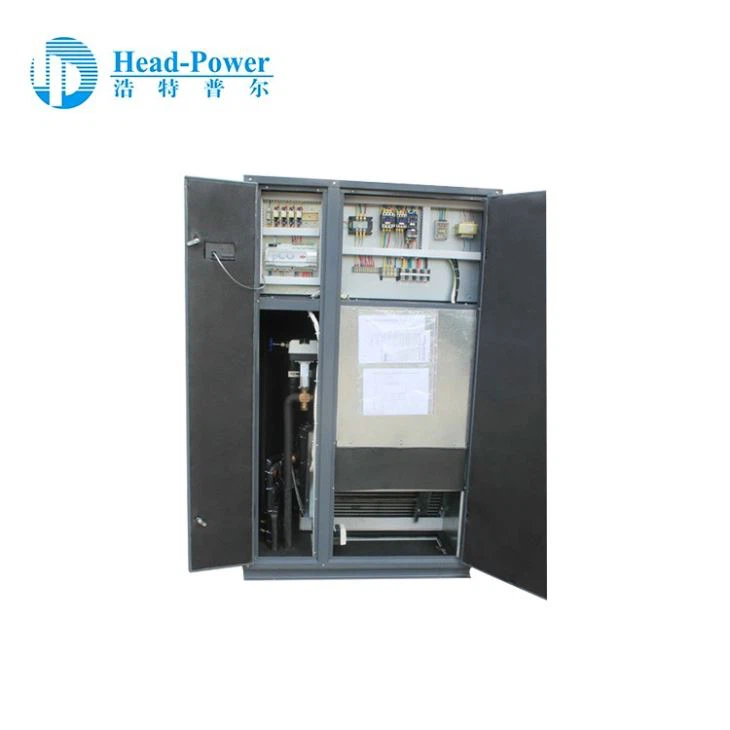

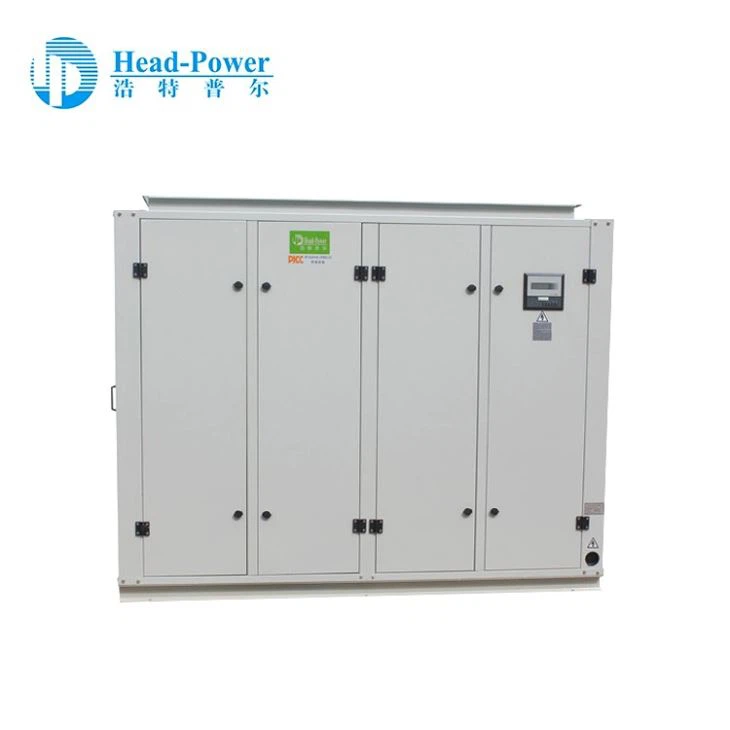

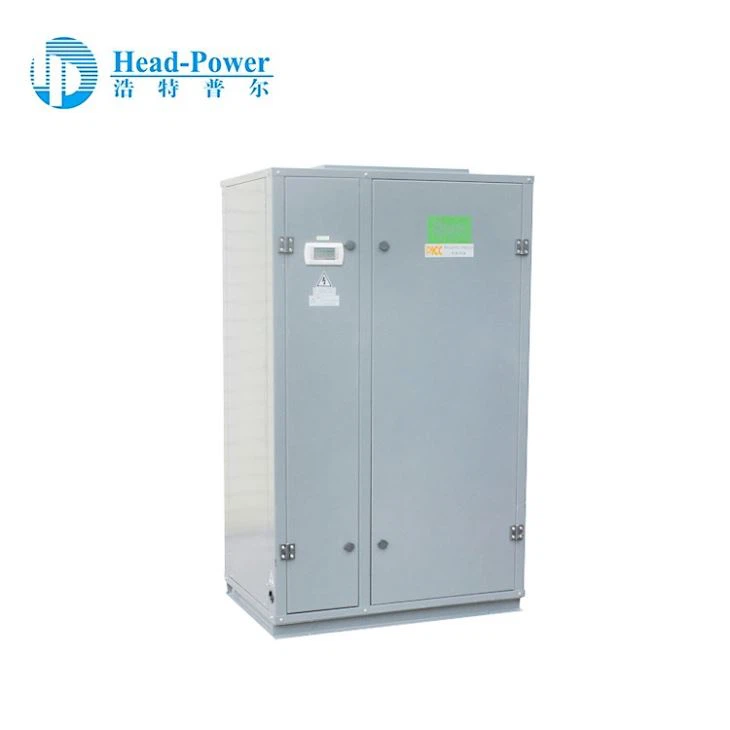

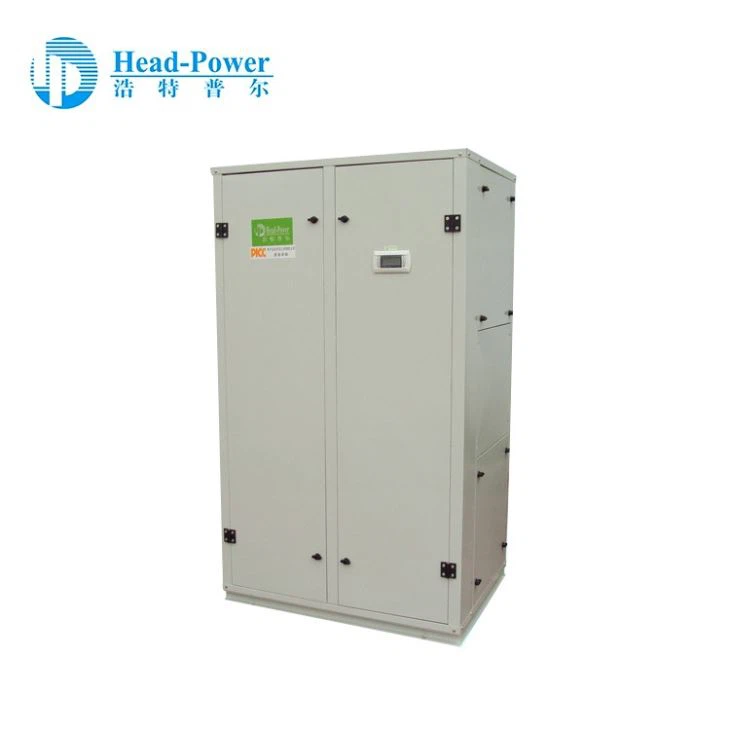

The Telecom Water Cooled Precision Air Conditioner is much better than common air conditioner as it high precision and stable performance. It is not only controls the temperature with high accuracy and also the humidity at the same time. Please just let us know your special requirements, we are ready to design the most efficient plans for you.
The Telecom Water Cooled Precision Air Conditioner can keep temperature and humidity within very strict parameters. This is particularly difficult due to extremely variable thermal loads, that require very high cooling capacity at full load. It makes possible to keep ambient temperature and humidity constant even with very strong loads variations, preventing dangerous temperature variations, almost unavoidable with traditional ON/OFF compressor driven units.
Technical specification:
Room precision air conditioner | ||||
Model No. | JH/JHF | |||
Unit Performance | Cooling Type | Water-cooled/Air-cooled | ||
Cooling capacity | kW | 6.71~146 | ||
Electric heating capacity | kW | 4.5~56 | ||
Cooling consumed power | kW | 2.7~50.3 | ||
Air flow | m3/h | 2200~34000 | ||
External static pressure | Pa | 30~80 | ||
Power supply | 220/380/460V-3N-50/60Hz | |||
Refrigerant | R22/R407c/R410a | |||
Indoor unit | Fan | Fan way | Upper/Front/Down supply | |
Motor power | kW | 0.18~11 | ||
Humidification | Humidifying | Kg/h | 4~25 | |
Power | kW | 3.7~18.75 | ||
Noise level | dB(A) | ≤53~72 | ||
Model No. | SW | |||
Outdoor unit | Compressor | Type | Rotor/Scroll | |
Power | kW | 2.25~36 | ||
Condenser type | Copper tube aluminum fins | |||
Blower power | kW | 0.37~4.4 | ||
Noise level | dB(A) | ＜62~69 | ||
Connection tube | Gas tube(mm) | Φ12.7/Φ15.9/Φ19.1 | ||
Quantity | 1~5 | |||
Liquid tube(mm) | Φ9.52/Φ12.7 | |||
Quantity | 1~5 | |||
Connection | Flare opening | |||
Note: | ||||
1. Return air vent are equipped with G4 air filter. | ||||
2. Control temperature range between 18-32℃,accuracy of ±0.5℃ | ||||
3. Humidity control range of 40~80%, with an accuracy of ± 3% | ||||
4. Compressors are put indoor units. | ||||
FAQ:
Q1：How about the price of this product?
A1：This product can be different capacity and quantities, so you can contact me directly to know the accurate price.
Q2：I want to known more information, how can I contact with you?
A2：I am Angie Pan. You can directly contact me see above namecard.
Q3: How about the quality of your product?
A3: Our products strictly manufatured according to national and international standard. We got ISO quality and CE,CCS,SGS…etc.
Q4：How about the price of this product?
A4：This product can be different capacity and quantities, so you can contact me directly to know the accurate price.
