Product feature:
Refinish Spray Booths Heat Recovery AHU System researched and produced can not only discharge indoor dirty air into the outdoor air, but also send fresh air into the indoor air. Advanced energy recovery technology is adopted to convert energy by using the temperature and humidity difference between indoor and outdoor, so that ventilation can be achieved and indoor pollution can be solved.It can also keep the indoor temperature and humidity basically unchanged, perfectly solving the contradiction between fresh air and energy consumption.

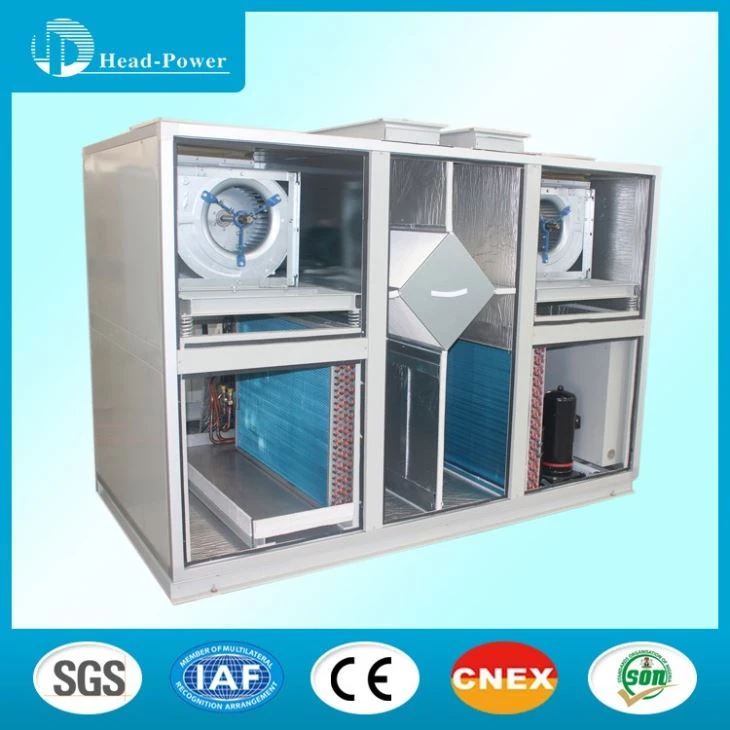

Structure
Panels and frame are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.
Direct expansion coils with condensate drain tray.
Hermetic compressor
High efficiency scroll compressor for the whole range, with built-in thermal overload cut-out and crankcase heater, mounted on rubber vibration dampers
Ripple type acoustic insulation for compressor section, and thermal insulation for coil and fan section, low noise

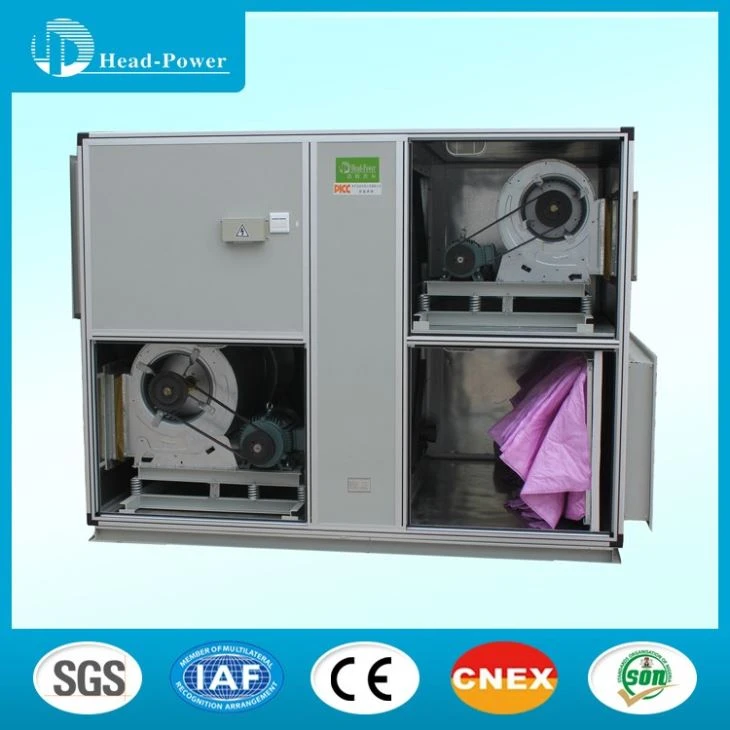

Centrifugal fan
Refinish Spray Booths Heat Recovery AHU System Forward curve centrifugal fans for air treatment section and axial fans for condensation section
Front, side and underside air discharge of the treatment unit
High external pressure, long air supply distance
Electric panel
Electric panel consists of breakers and contactors for compressors and fan motors, phase sequence relay and other necessary protection devices for the main components
Easy operation line controller
Cooling/Heating/Auto
Error indication
Timing on/off
Optional
Economizer with fresh, return air dampers and fresh air hood
Free cooling function for low ambient temperature
Low ambient control device for operation of outdoor units at ambient temperatures from less than 20°C down to -10°C
BMS devices
T3 (Tropical climate)
Roof curb
Metal / aluminum filter
Heat recovery to 100%
Evaporating section: double skin with 50mm polyurethane foam
Optional water heating coil
Metal or plastic mesh on condenser coil
Optional supply / return air configurations
Upgraded plug fan
G4 filter, plate and bag filter
Product detail:
Refinish Spray Booths Heat Recovery AHU System | |||
Model No. | HAX | ||
Nominal cooling capacity | kW | 9-216 | |
Nominal heating capacity | kW | 9.5-224 | |
Power supply | 220V-460V/3PH/50Hz-Hz | ||
Refrigerant | R22/R407c | ||
Compressor | Type | Hermetic Scroll | |
Power | kW | 1.7-36 | |
Exhaust air system | Air volume | m3/h | 1500-33000 |
ESP. | Pa | 100-550 | |
Motor power | kW | 0.55-15 | |
Fresh air system | Air volume | m3/h | 1000-20000 |
ESP. | Pa | 80-480 | |
Motor power | kW | 0.2-5.5 | |
Heat exchange efficiency | ＞87% | ||
Noise level | dB(A) | 48-68 | |
Dimensions | L*W*H | mm | 2000x1500x850 |
Net weight | kg | 380-1700 | |
RFQ:
Q1：What is your company's after-sales service?
A1：Our warranty period is one year. If there is any problem in this year, we can send you the new parts for replacement. Meanwhile, welcome to consulting the technical knowledge.
Q2: Are you a manufacturer or trading company?
A2: We are a manufacturer which specialized in produce HVAC product since 2001.
Q3: What's your terms of packing?
A3: Polyfoam and wooden case. It will be very safe for shipping.
Q4: What's the terms of delivery?
A4: EXW, FOB, CFR, CIF.
