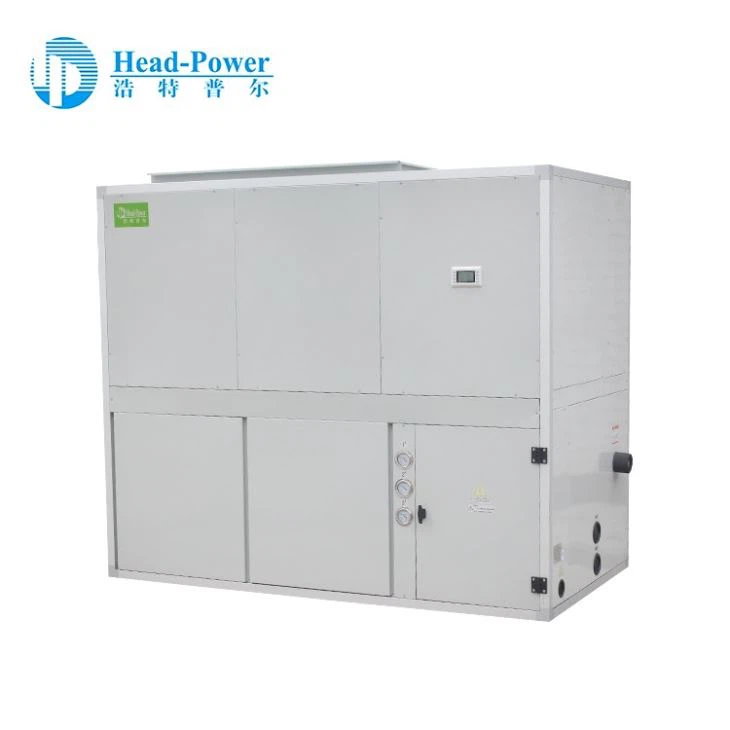

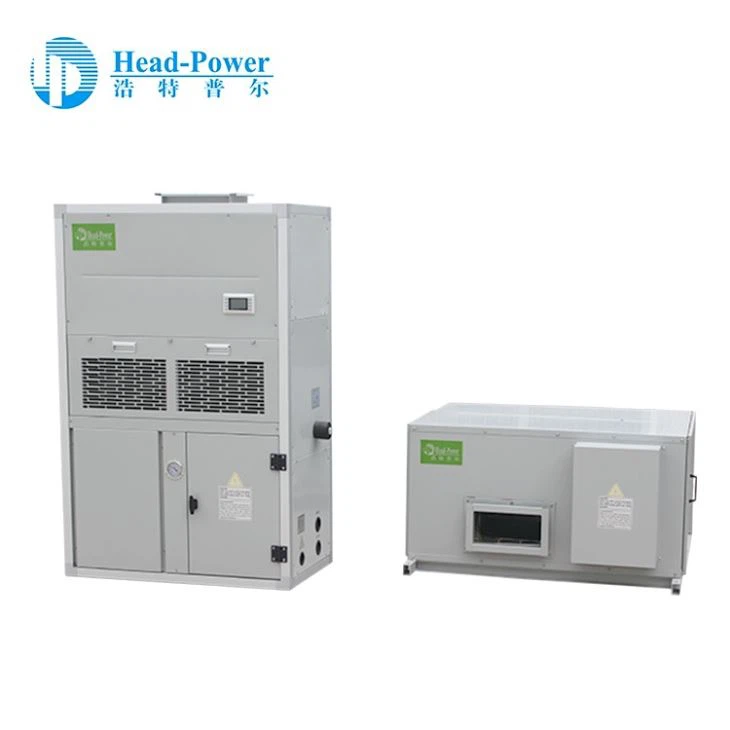

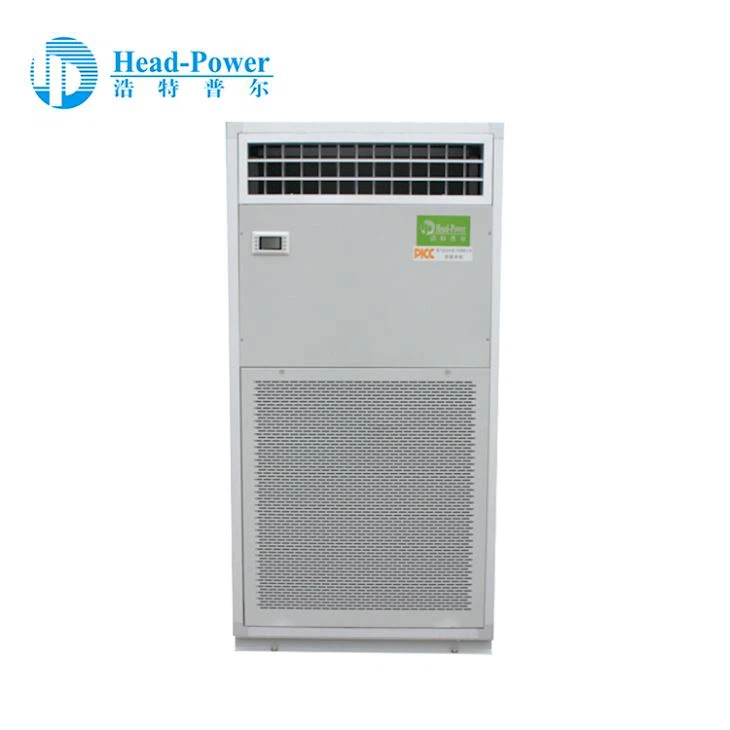

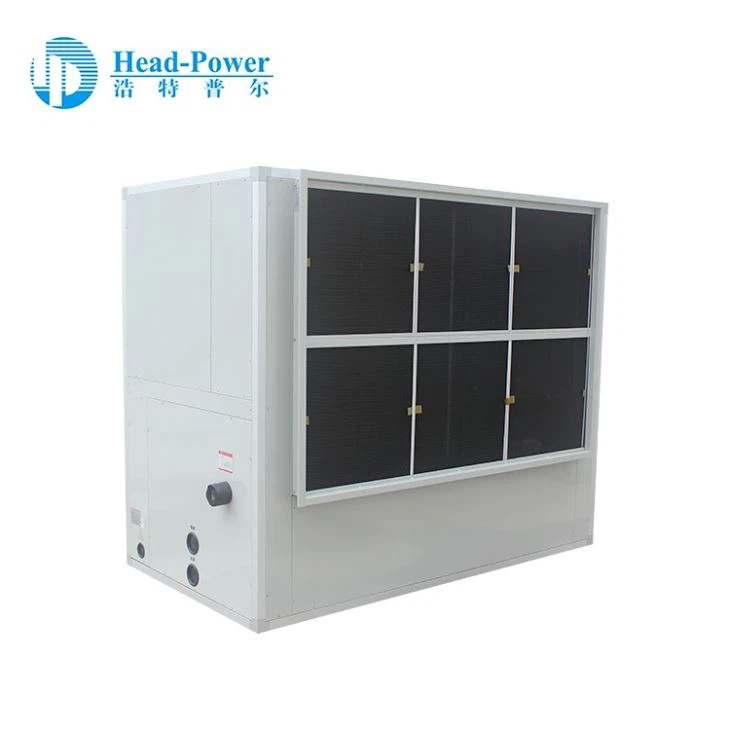

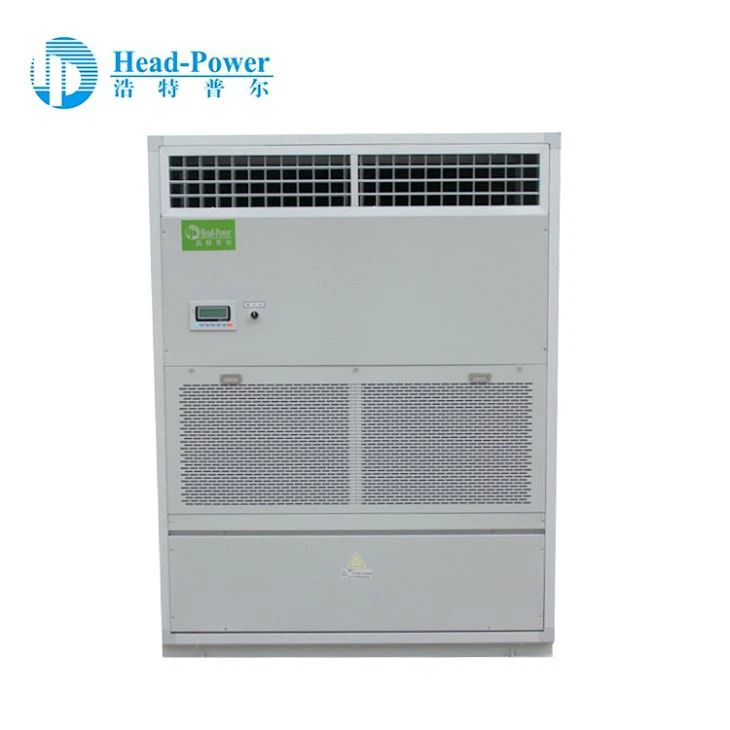

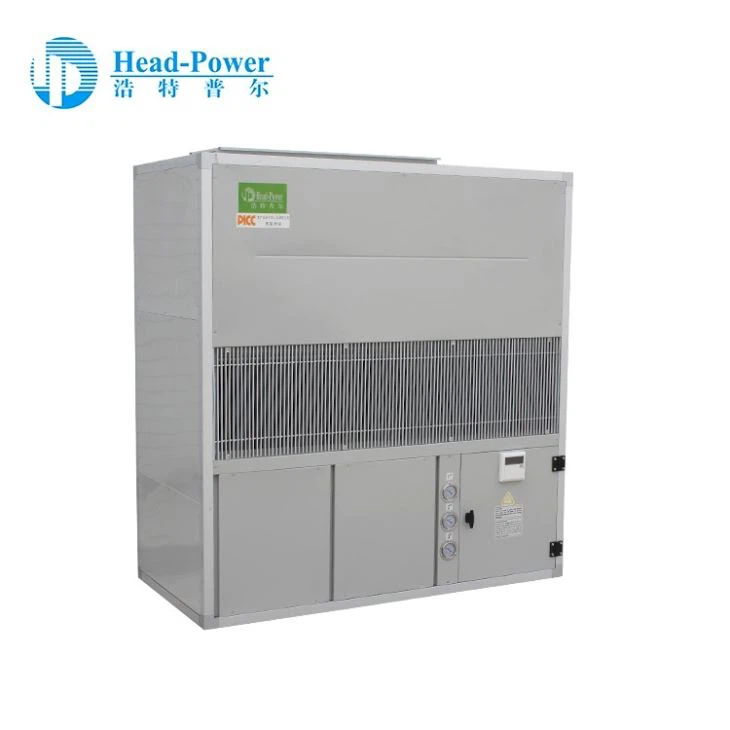

Self-Contained Cabinet Marine Air Conditioner
Self-Contained Cabinet Marine Air Conditioner

Self-Contained Cabinet Marine Air Conditioner

Packaged air conditioner specially designed for use in marine and offshore installations,these unit can be used for all kinds of capacity air conditioning requirements.
Send Inquiry
Chat Now

Product Features:


Compressor: Hermetic Scroll Type, Copeland, Hitachi, Panasonic
Condenser: copper tube copper fin, inner high efficient tube
Material of Frame: Mild-steel "C" Channel, Treated with Hot-dipped Galvanizing, and Zinc Coating
Material of Casing: SUS 304, Coating
Self-Contained Cabinet Marine Air Conditioner is low noise design, reliable run, anti corrosive and complete protections, small volume and light weight
Sea Water Proof & Anti-Vibration
Electronic Components with Well-known Brands
Self-Contained Cabinet Marine Air Conditioner is equipped with Danfoss Expansion Valves

Installation: Cabinet, Ceiling, Ceiling Floor and Duct Type which can be determined by the clients


Product description:


                                            Sea-water cooled Package Unit(Water-Air)

Model NO.

MWL



Cooling capacity

kW

19-258


Power supply


220V~380V/3PH/50-60Hz


Fan data

Air flow

m3/h

1600~38500

External static pressure

Pa

80-850


Noise level

dB(A)

50~73


Motor power

kW

0.3~22


Refrigerant

Type

R22/R407c/R410a


Compressor

Type

Type

Hermetic Scroll

Rated power

kW

2.25~66


Water side heat exchanger

Type

Type

Alpaka & SS316 Tube plate & end cap Shell and tube

Water flow

m3/h

2.3~42


Water pressure drop

mH2O

2.3~6.3


Pipe connection

in/mm

DN25/32/40/50/65


Air side heat exchanger

Type

Copper tubes with aluminium fins or copper fins


Unit Dimensions

L*W*H

mm

750x550x1600~3500x1700x2000

Note:




1. Nominal cooling condition: indoor air temperature 27℃DB/19.5℃WB; seawater   inlet/outlet temperature 32℃/37℃.






查查看|抢第一 3 0 0% 0 0 0 2 1 - - 关键词分析 加入直通车词库 dc marine air conditioner 查查看|抢第一 3 0 0% 0 0 0 6 2 6 2 关键词分析 加入直通车词库 self contained marine air conditionerconditioner 查查看|抢第一 2 0 0% 0 0 0 2 1 - - 关键词分析 加入直通车词库 us series marine air conditioner 查查看|抢第一 2 0 0% 2 0 116.6 2 0 - - 关键词分析 已加入直通车词库 self contained marine air conditioner 220 volts 查查看|抢第一 2 0 0% 0 0 0 3 0 - - 关键词分析 加入直通车词库 词 marine air conditioner marine air conditioner for boat used marine air conditioner self contained marine air conditioner gree marine air conditioner indoor unit


15ton package marine air conditioner

查查看|抢第一 0 0 0% 0 0 0 0 0 - - 关键词分析 加入直通车词库 small yacht marine air conditioner 查查看|抢第一 0 0 0% 0 0 0 0 0 - - 关键词分析 加入直通车词库 ceiling mounted r407c gas marine air conditioner 查查看|抢第一 0 0 0% 0 0 0 0 0 - - 关键词分析 加入直通车词库 marine air conditioner 24000btu 查查看|抢第一 0 0 0% 0 0 0 0 0 - - 关键词分析 加入直通车词库 15ton marine air conditioner 查查看|抢第一 0 0 0% 0 0 0 0 0 - - 关键词分析 加入直通车词库 词 marine air conditioner contained rooftop marine air conditioner fishing boat marine air conditioner 24000btu 12000btu self containedpackaged marine air conditioner r407c gas marine air conditioner



fishing boat marine air conditioner 2



FAQ:


Q1：What is your company's after-sales service?

A1：Our warranty period is one year. If there is any problem in this year, we can send you the new parts for replacement. Meanwhile, welcome to consulting the technical knowledge.


Q2: What about the warranty?

A2：The warranty is 18months after delivery.


Q3：What's the terms of delivery?

A3: EXW, FOB, CFR, CIF.


Q4: How about the delivery time?

A4: About 25-30 days after the receipt of deposit and confirmation on all designs based of normal condition.


Hot Tags: self-contained cabinet marine air conditioner, China, manufacturers, customized, quotation, low price, made in China, Boat Air Conditioner, 3 Tons Seawater Cooledair Conditioner, 25kw Marine Packaged Air Conditioner, Boat Marine Air Conditioner, Ship Air Conditioner, 100KW SeaWater Cooled Air Conditioner
