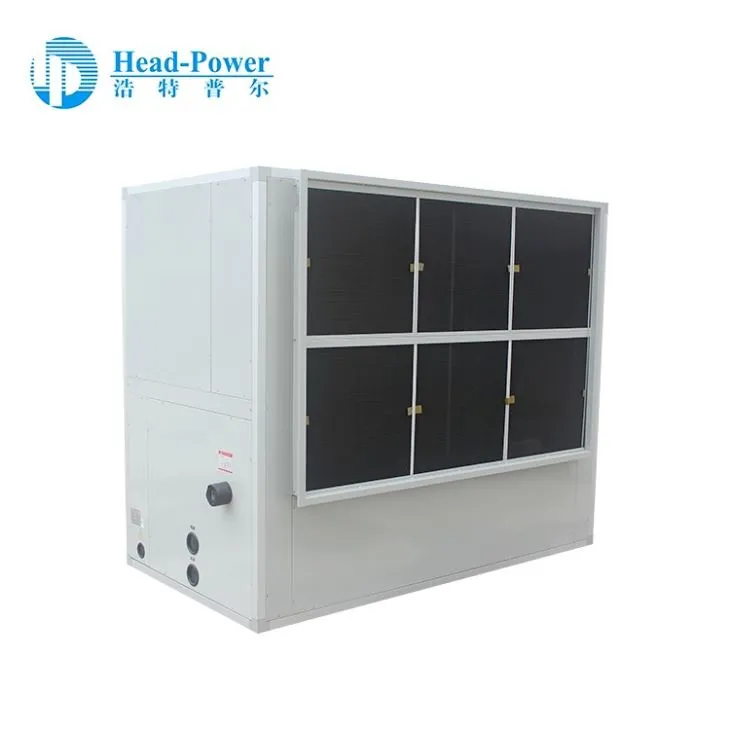

Steamer Marine Seawater Cooled Air Conditioner
Steamer Marine Seawater Cooled Air Conditioner

Steamer Marine Seawater Cooled Air Conditioner

Applicable to yacht, passenger liner, fishing boat, cargo boat, oil tanker and offshore oil platform and many other occasions. Marine self-contained air-conditioning units for ships, boats and yachts use. sea water source AC that is widely, unlimted pleasure for sailing boats, motorboats and yachts. keep cool on board, marine cooling solutions, higher efficiency because of heat exchange with sea water.
Send Inquiry
Chat Now

Product Features:

Steamer is your and our passion. On the open sea the sun heats up your steamer quickly. Enjoy the sun outside and keep cool below deck whenever you wish a refreshment. Relax while a air-conditioning system is working for you.

Steamer Marine Seawater Cooled Air Conditioner has below features:

1. Outlay electric box for easy installation & maintenance.
2. Low start-up current thanks to power delay control design.
3. Forced operation available for emergency situation.
4. LCD display of operation status.
5. Nickel-Copper tube-in-tube heat exchanger for sea water side.
6. All-copper fined tube heat exchanger for air side.
7. One PCB for the entire control and minimize cable connections, higher reliability easier maintenance.
8. Universal for both 50Hz and 60Hz.


Technical Specification:


                                                     Sea-water cooled Package Unit(Water-Air)

Model NO.

MWL



Cooling capacity

kW

19-258


Power supply


220V~380V/3PH/50-60Hz


Fan data

Air flow

m3/h

1600~38500

External static pressure

Pa

80-850


Noise level

dB(A)

50~73


Motor power

kW

0.3~22


Refrigerant

Type

R22/R407c/R410a


Compressor

Type

Type

Hermetic Scroll

Rated power

kW

2.25~66


Water side heat exchanger

Type

Type

Alpaka & SS316 Tube plate & end cap Shell and tube

Water flow

m3/h

2.3~42


Water pressure drop

mH2O

2.3~6.3


Pipe connection

in/mm

DN25/32/40/50/65


Air side heat exchanger

Type

Copper tubes with aluminium fins or copper fins


Unit Dimensions

L*W*H

mm

750x550x1600~3500x1700x2000

Note:




1. Nominal cooling condition: indoor air temperature 27℃DB/19.5℃WB; seawater   inlet/outlet temperature 32℃/37℃.




marine heat pump air conditioner

air conditioner marine

	 seawater cooled yacht air conditioner

seawater packaged unit




seawater packaged unit



FAQ:


Q1:What about the warranty?

A1:The warranty is 18months after delivery.


Q2: Is it possible to make our logo on the product?

A2:Yes, OEM is available,including special style,color,logo,packing etc.


Q3:OEM provided?

A3: Yes, OEM and ODM is available. Customized.


Q4: How about the delivery time?

A4: About 25-30 days after the receipt of deposit and confirmation on all designs based of normal condition.
