Name: China Customized Free Cooling Server Room Precision Air Conditioning Manufacturers - Low Price - Head-Power
Brand: HEAD-POWER
SKU: 98379210

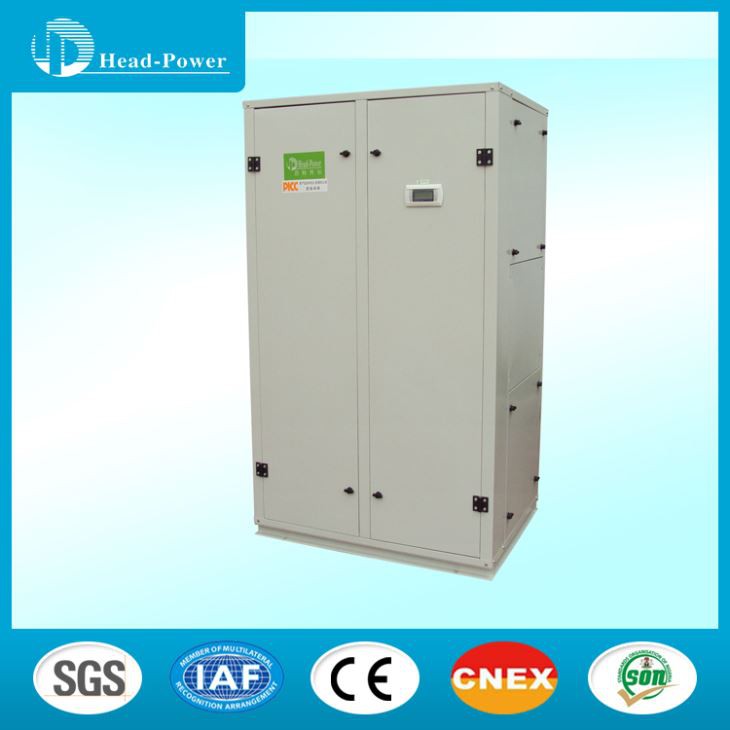

Free Cooling Server Room Precision Air Conditioning

Head-power precision air conditioner can be used in computer room, equipment room and other places of precision environment regulation, the unit adopts advanced design theory After strict testing by the professional laboratory of precision air conditioning, it has the characteristics of high efficiency, energy saving, stability and long life, and has the function of constant temperature and humidity regulation Energy saving product certification, can meet IT, power, transportation and other industries of precision environmental regulation needs

Send Inquiry

Chat Now

1. High reliability

The refrigeration problem does not affect much, and the reliability of air conditioning in the machine room is not high, which will threaten the security of the whole machine room equipment and even the whole network.

2. Accurate control

(1) the humidity

In the machine room, too high humidity will condense into water mist or even water droplets, too low humidity will produce static electricity, both of which are very adverse to the operation of the equipment. As for the special air conditioning in the machine room, humidity control is an important parameter, and its humidity control accuracy is generally up to ±5. High ventilation power can also keep the humidity stable, so that the relative humidity shaking control within 50%±5%RH, to ensure the operation function of equipment in the machine room.

(2) the temperature

The ventilation times of precision air conditioners in the machine room are 30-60 times per hour. The high power ventilation ability enables the air conditioning system to sense the temperature fluctuation of the whole machine room, which ensures that the temperature conditioning precision of the machine room is maintained at about 1℃, and then ensures the cooling of the whole machine room.

(3) the cleanliness

In addition to the temperature and humidity, room cleanliness of the air also has the strict request, dust, corrosive gas in the air will be serious damage to electronic components become old, yea, causing problems such as poor contact and short circuit, the general comfort air conditioning filters, cannot reach room cleanliness requirements, and computer room precision air conditioning have efficient air filtration ability, can according to the relevant specification convection turn the air for dust removal and filtration, so that the room can ensure the cleanliness required, and then ensure the safe operation of the equipment.

(4) High-precision planning

Machine room precision air conditioning can not only adjust the temperature, but also can adjust the humidity, and the accuracy is very high.

Technical specification:

Room precision air conditioner
Model No.		JH/JHF
Unit Performance	Cooling Type		Water-cooled/Air-cooled
Cooling capacity	kW	6.71~146
Electric heating capacity	kW	4.5~56
Cooling consumed power	kW	2.7~50.3
Air flow	m³/h	2200~34000
External static pressure	Pa	30~80
Power supply		220/380/460V-3N-50/60Hz
Refrigerant		R22/R407c/R410a
Indoor unit	Fan	Fan way		Upper/Front/Down supply
Motor power	kW	0.18~11
Humidification	Humidifying	Kg/h	4~25
Power	kW	3.7~18.75
Noise level	dB(A)	≤53~72
Model No.		SW
Outdoor unit	Compressor	Type		Rotor/Scroll
Power	kW	2.25~36
Condenser type		Copper tube aluminum fins
Blower power	kW	0.37~4.4
Noise level	dB(A)	＜62~69
Connection tube	Gas tube(mm)	Φ12.7/Φ15.9/Φ19.1
Quantity	1~5
Liquid tube(mm)	Φ9.52/Φ12.7
Quantity	1~5
Connection	Flare opening
Note:
1. Return air vent are equipped with G4 air filter.
2. Control temperature range between 18-32℃,accuracy of ±0.5℃
3. Humidity control range of 40~80%, with an accuracy of ± 3%
4. Compressors are put indoor units.
