Assembly Heat Recovery Air Handling Unit For Skin Care Workshop Shipment to Europe

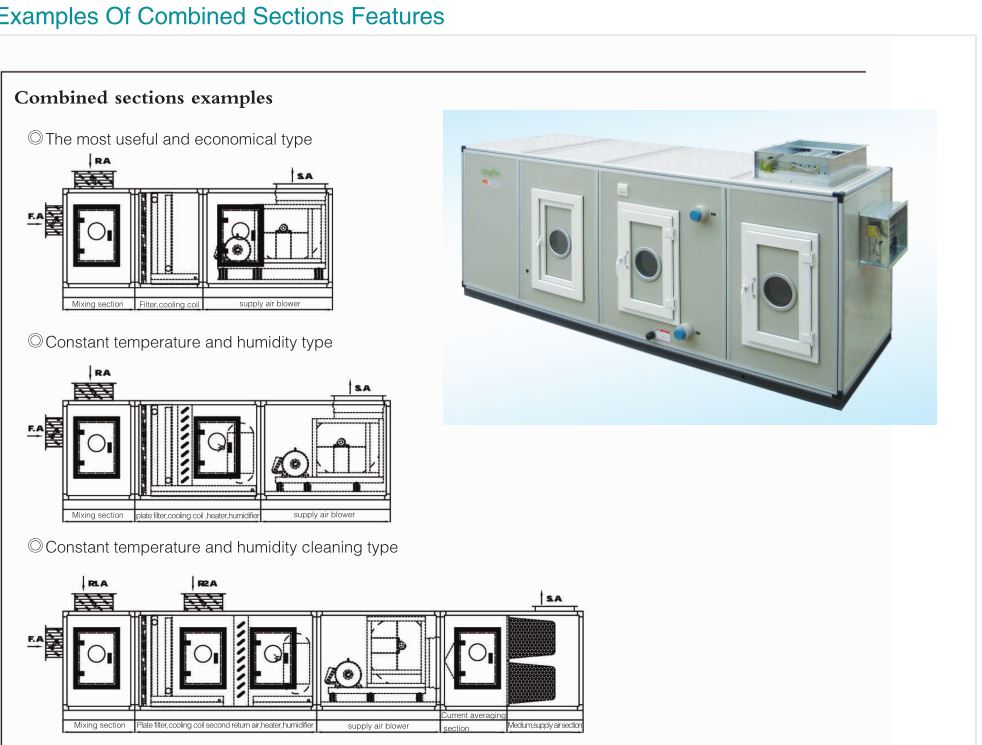

The combined air-conditioning unit is an air treatment equipment assembled from various air treatment functional sections. Suitable for air-conditioning system with resistance greater than 100Pa. The air handling function section of the unit includes air mixing, equalizing, filtering, cooling, primary and secondary heating, dehumidification, humidification, blower, return fan, water spray, noise reduction, and heat recovery: Paper core heat exchanger,aluminum core heat exchanger and rotor wheel heat exchanger.
The setting of the functional section of the purification unit should be determined according to the production process or clean room requirements, which is the basic principle. The integration and selection of the functional sections of the purification unit should be closely integrated with the design of the air-conditioned room.
The microbial contamination point in the purification unit must be controlled. Because the structure, temperature and humidity are more suitable for the growth of microorganisms such as bacteria, the box, filter, muffler, humidifier, etc. of the purification unit have become potential microbial contamination points. Take control. If the unit casing should be no damage, no rust, sterilization resistance, good thermal insulation and sealing performance, the antimicrobial material can be used as the refrigerator has been widely used; satisfactory performance filter, muffler, no humidifier retentate condensables , within the unit cleaned or disinfected frequently.
The manufacturing process uses a mechanical riser to ensure good contact between the copper tube and the aluminum foil bell. There are also a variety of options such as hydrophilic aluminum foil, copper foil, steel tube steel sheet, steel tube aluminum sheet and stainless steel coil. The chiller, hot water coil and steam coil of the HEAD-POWER AIR CONDITIONING box are selected by professional selection software. The software is written in strict accordance with the laws of thermal engineering, and the software is corrected in combination with the actual use of the coil. Make the software more reliable.
The combined air handling unit has high motor safety factor and low noise. The low-noise fans used have undergone rigorous dynamic and static balance experiments and have been selected by professional wind turbine application software to obtain the best fan operating point, fan efficiency and noise level. Both the fan and the motor assembly have a unique damping device. The fan's air outlet and the panel are flexibly connected to minimize vibration and noise. The unique sealing structure makes the noise not pass out of the unit, so we provide you with a quiet running unit to meet the requirements of different industries.
Thank you for our client's support and trust. The customer ordered our AHU unit from HEAD-POWER.
