Guangdong Head-Power Air-Conditioning Co., Ltd. is one of the leading manufacturers and suppliers of rotor dehumidifier central air conditioner in China, also supports customized service with low price. If you're going to buy advanced rotor dehumidifier central air conditioner made in China, welcome to get quotation from our factory.
HEAD-POWER specializing in the manufacture of marine rotor dehumidifiers, if you want to consult and buy marine /HVAC/ industrial and commercial rotor heat recovery dehumidifiers, please contact me.

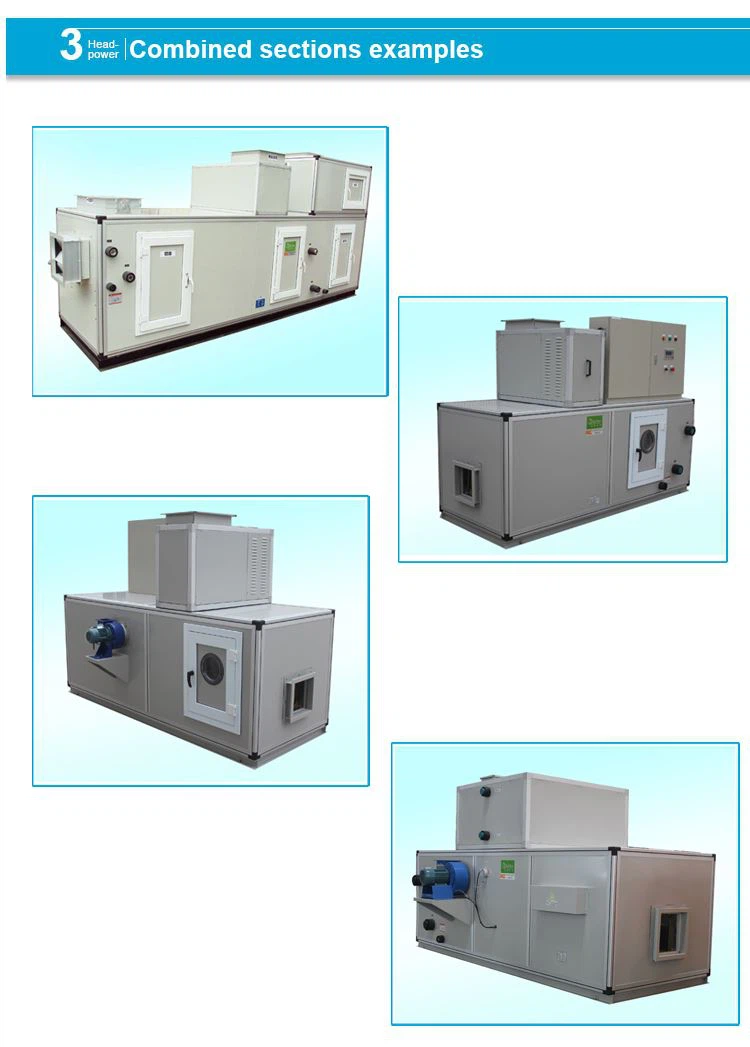

Rotor Dehumidifier Central Air Conditioner unitized Fresh Air Management System integrated through a unique configuration of EcoFresh Heat Wheel, a cooling coil and the innovative G3MA “Passive” desiccant dehumidification wheel (patent ) and a proprietory controlled embedded logic .
Rotor Dehumidifier Central Air Conditioner Innovative new technology.
Rotor dehumidifier specification data
| Model Number | ZCK015FT | ZCK02FT | ZCK04FT | ZCK06FT | ZCK08FT | ZCK10FT | ZCK13FT | ZCK15FT | ZCK20FT | ||
| Dealt Air | Air Flow | m³/h | 1500 | 2000 | 4000 | 6000 | 8000 | 10000 | 13000 | 15000 | 20000 |
| External Static Pressure | Pa | 400 | 400 | 400 | 400 | 500 | 500 | 500 | 600 | 600 | |
| Fan Power | KW | 1.5 | 1.5 | 3 | 5.5 | 7.5 | 7.5 | 11 | 11 | 15 | |
| Regeneration Air | Air Flow | m3/h | 500 | 750 | 1350 | 2000 | 2700 | 3500 | 4200 | 5000 | 6700 |
| External Static Pressure | Pa | 300 | 300 | 200 | 200 | 400 | 300 | 300 | 400 | 300 | |
| Fan Power | KW | 1.1 | 1.5 | 1.5 | 1.5 | 3 | 3 | 3 | 4 | 4 | |
| Regeneration Heating | Electric Heating Capacity | KW | 15 | 24 | 48 | 68 | 92 | 114 | 143 | 171 | 228 |
| Steam Consumption | kg/h | 25 | 41 | 82 | 116 | 155 | 194 | 243 | 292 | 389 | |
| Rotor Dehumidifier | Dehumidity Capacity | kg/h | 9 | 14 | 28 | 42 | 56 | 70 | 88 | 106 | 143 |
| Weight | Rotor Section | kg | 500 | 500 | 600 | 700 | 800 | 1000 | 1100 | 1200 | 1400 |
| First Cooled Filter Section | kg | 500 | 500 | 650 | 750 | 900 | 1050 | 1150 | 1250 | 1400 | |
| Last Cooled Fan Section | kg | 600 | 600 | 800 | 900 | 1000 | 1200 | 1300 | 1400 | 1600 | |
| Dimensions | Length of Rotor Section A3 | mm | 1230 | 1230 | 1230 | 1680 | 1680 | 1680 | 1680 | 1760 | 1760 |
| Length A | mm | 4320 | 4320 | 4320 | 4600 | 5080 | 5080 | 5480 | 5760 | 5900 | |
| Width B | mm | 850 | 850 | 1010 | 1230 | 1350 | 1480 | 1670 | 1890 | 2240 | |
| Height C | mm | 930 | 930 | 1090 | 1310 | 1450 | 1580 | 1770 | 1990 | 2340 | |
| Model of Outdoor Machine × Amount | SW-6 | SW-10 | SW-25 | SW-36 | SW-50 | SW-60 | SW-80 | SW-100 | SW-120 | ||
