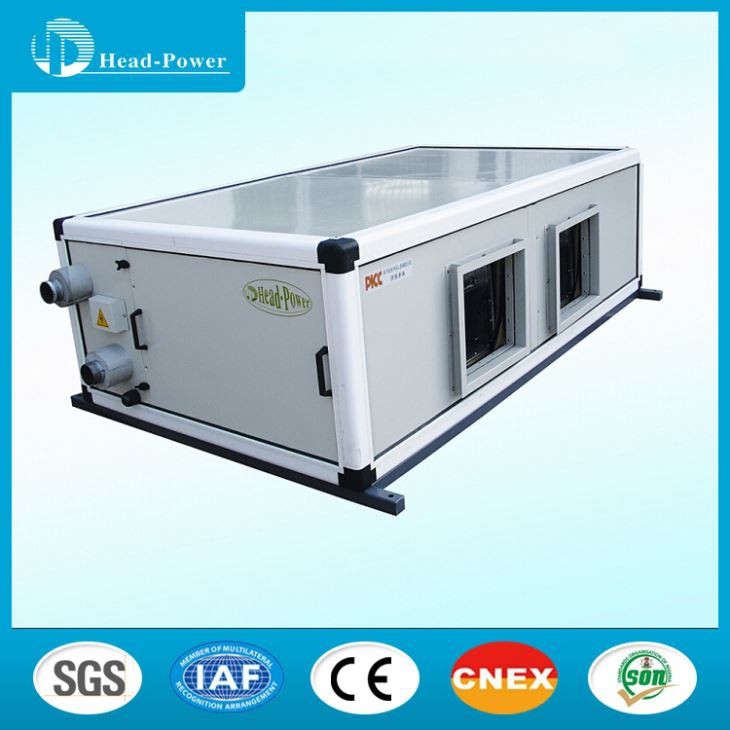

Chilled Water Air Handler AHU 120KW Air Handling Unit

Air handling units’ condition and distribute air within a building. They take fresh ambient air from outside, clean it, heat it or cool it, maybe humidify it and then force it through some ductwork around to the designed areas within a building.

Send Inquiry

Chat Now

Chilled Water Air Handler AHU 120KW Air Handling Unit

Product Introduction For Chilled Water Air Handler 120KW

Air handling units' condition and distribute air within a building. They take fresh ambient air from outside, clean it, heat it or cool it, maybe humidify it and then force it through some ductwork around to the designed areas within a building.

We preserve increasing and perfecting our solutions and service. At the same time, we function actively to do research and growth for OEM Customized Air Handling Unit Ventilation. ahu recuperator. package unit HVAC.

Working Principle

● Both supply fan and exhaust fan are built inside to bring in fresh air and exhaust out the stale indoor air as well, thus to keep indoor space in natural comfort.

● Built-in heat exchanger (rotary heat exchanger or plate heat exchanger) transfers energy contained in the outgoing indoor air to the coming fresh air, thus fresh air is precooled or preheated.

● Various functional sections such as filter section, cooling/heating section, humidifying section etc. can be combined together to meet different air treatment requirements.

a. Fans And Motors

Double air-intake centrifugal efficient fans are used.

Coil Design

According to varied flows, temperature differences and operating conditions, different internal process designs are adopted in order to maintain coil heat exchange performance and coil water pressure drop at a reasonable and efficient levels and reduce applicaiton difficulty; designed head-on wind speed is 2.5m/s - 2.8m/s, and special design requirements are also acceptable.

Q: Why is the flow of cooling water larger than that of chilled water?

A: The closed circulation of chilled water, the cooling water is semi-closed, and the heat loss is large. Because the water temperature of the cooling water is high, I want to use high temperature water to take away the heat of the condenser, and finally the temperature difference between the outlet water and the inlet water is small. Since it is not possible to have a large temperature difference and a small flow rate, then only a small temperature difference and a large flow rate.

Air conditioning system:	chilled water air handling unit
MOQ	3-10 Units
Cooling capacity	5TON-300TON (17.6KW-105.6KW)
Cooling coils materials	Copper tubes aluminum fins or copper tubes copper fins
Hot water coil	Can be provided and customized according to customer requirements
