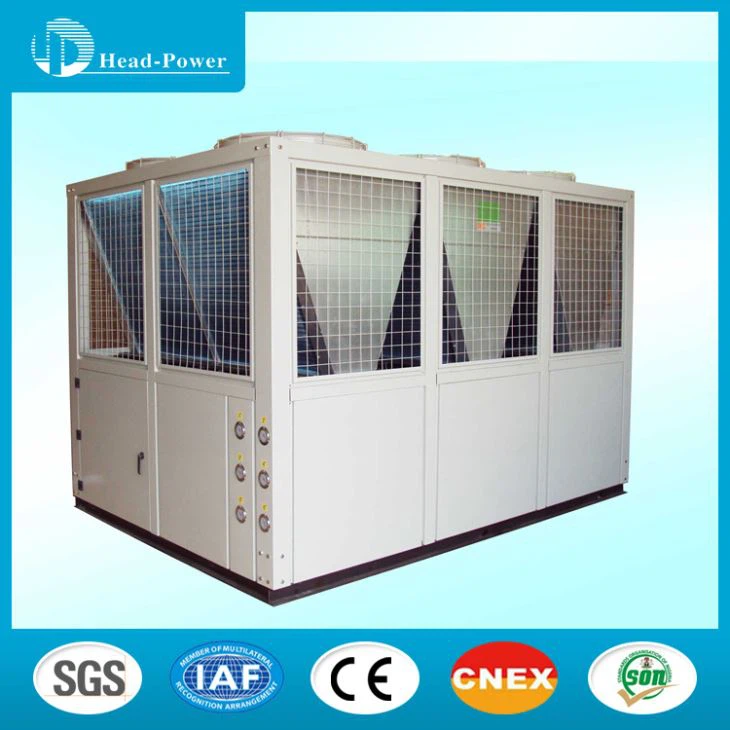

50ton air cooled scroll water chiller
| Model No. | HWAC65 | ||
| Cooling capacity | kW | 176 | |
| Power Supply | 380V/ 3PH~50HZ | ||
| Safety devices | High&low pressure switch, anti frozen protector, overload protector, phase order protector, internal overheat protection, water flow switch, etc. | ||
| Operation control | Microcomputer control automatically, abnormal warning, selfchecking, unit balance operation, remote control (optional), Timer on/off | ||
| Refrigerant | R22/R410A/R407C | ||
| Volume control | Thermostatic expansion valve | ||
| Compressor | Type | Hermetic scroll compressor | |
| Power | kW | 26.5*2 | |
| Air side heat exchanger | Fan type | Axial type | |
| Air direction | Top discharging | ||
| Fan power | kW | 2.2*4 | |
| Water side heat exchanger | Type | Shell and tube | |
| Water flow | m3/h | 32 | |
| Water resistance | kPa | 40 | |
| Pipe connection | inch | 80 | |
| Noise level | dB(A) | 72 | |
| Net weight | kg | 1500 | |
| Unit dimensions L*W*H | mm | 2400*2150*2200 | |
