All versions of air cooled Glycol chiller have:
Gas R410A
All units of the WPA Techno range use refrigerant gas R410A, which ensures a higher cooling capacity with low footprint of the machine.
The R410A assures a very low environmental impact, no impact on the ozone and a greenhouse gas coefficient lower than the usual refrigerants.
Outdoor installation
Headpower unit is designed to be used for every outdoor installation. The electrical panel, with IP54 protection, guarantees an adequate security for electric and electronic components.
The different options allow a further extension of the operating limits both at low and high temperatures, with enhanced protection for highly corrosive environments.

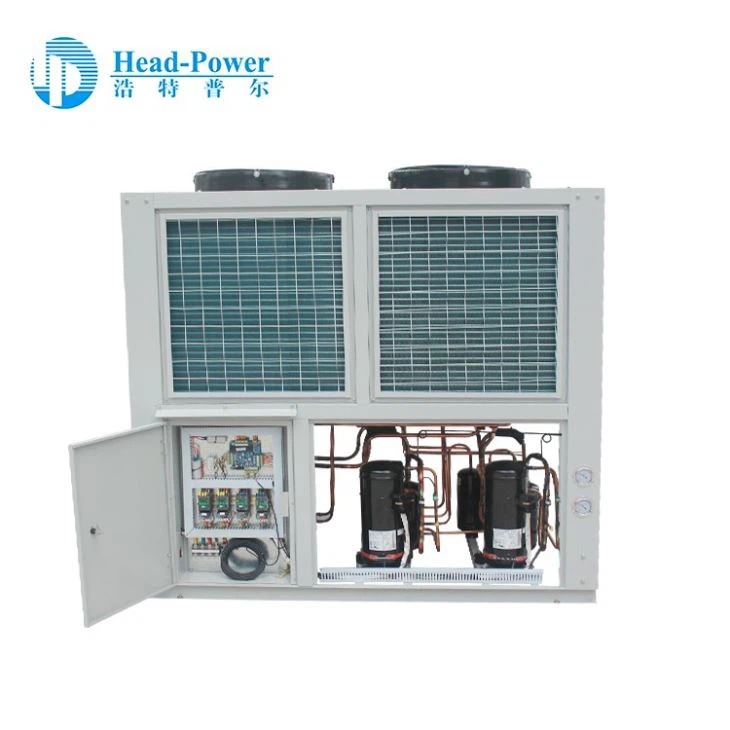

| 380v 3n 50hz 30ton Glycol Chiller | |||
| Model No. | HWAC36 | ||
| Cooling capacity | ton | 30 | |
| Power Supply | 460V/ 3PH~60HZ | ||
| Safety devices | High&low pressure switch, anti frozen protector, overload protector, phase order protector, internal overheat protection, water flow switch, etc. | ||
| Operation control | Microcomputer control automatically, abnormal warning, selfchecking, unit balance operation, remote control (optional), Timer on/off | ||
| Refrigerant | R410a | ||
| Volume control | Thermostatic expansion valve | ||
| Compressor | Type | Hermetic scroll compressor | |
| Power | kW | 9*3 | |
| Air side heat exchanger | Fan type | Axial type | |
| Air direction | Top discharging | ||
| Fan power | kW | 1.5*2 | |
| Water side heat exchanger | Type | Shell and tube | |
| Water flow | m3/h | 18 | |
| Water resistance | kPa | 35 | |
| Pipe connection | inch | 65 | |
| water pump | Power | kw | 4 |
| water flow | m3/h | 20 | |
| head | m | 28 | |
| Tank | L | 25 | |
| Noise level | dB(A) | 78 | |
| Net weight | kg | 1080 | |
| Unit dimensions L*W*H | mm | 2400*1200*2100 |
<img src="/Content/uploads/2020505419/202001161029566157258.jpg" alt= 50hz Glycol Chiller"/>
