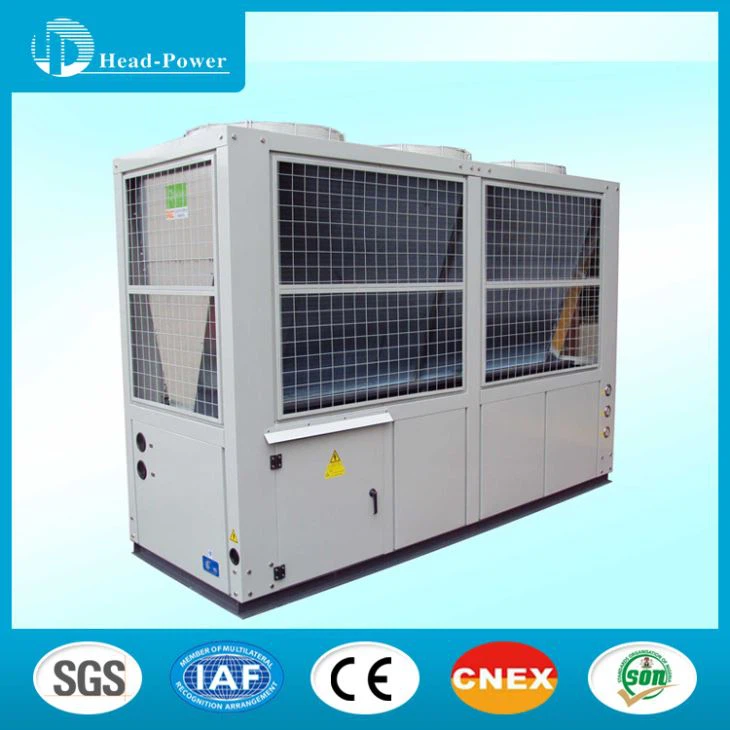

The Canteen Hotel Air Cooled Scroll Water Chiller adopts Siemens electronic components, LCD microcomputer controller, export standard, Chinese and English choice, easy to operate; Can display cold water inlet, cold water outlet and set temperature at the same time: can accurately control the water temperature between 3℃ and 5℃.
World famous scroll compressor brand, solid cast iron body, large heat dissipation area; To improve compressor cooling, lightweight aluminum pistons reduce friction and vibration, further reducing noise during operation; Advanced electronic protection module provides comprehensive protection for the motor, stable and durable.
The Canteen Hotel Air Cooled Scroll Water Chiller adopt new aviation hose, high pressure resistance, high temperature resistance, vibration resistance, better prevent refrigerant leakage.
Standard configuration of copper tube sleeve aluminum fin condenser, equipped with a large number of heat dissipation fins with excellent thermal conductivity, increase the heat dissipation area; Installing a heat dissipation fan can speed up the heat dissipation of the device.
Technical specification:
Air Cooled Scroll Water Chiller | ||
Model No. | HWAC | |
Cooling capacity | kW | 7-300 |
Power Supply | 220V-380V-460V/3N/50Hz-60Hz | |
Safety devices | High&low pressure switch, anti frozen protector, overload protector, phase order protector, internal overheat protection, water flow switch, etc. | |
Operation control | Microcomputer control automatically, abnormal warning, selfchecking, unit balance operation, remote control (optional), Timer on/off | |
Refrigerant | R22/R407c/R410a/R134a | |
Volume control | Thermostatic expansion valve | |
Compressor | Type | Hermetic Scroll Compressor |
Power | kW | 2.23-80 |
Air side heat exchanger | Fan type | Axial type |
Air direction | Top discharging | |
Fan power | kW | 6~30 |
Fan quantity | pcs | 2~6 |
Water side heat exchanger | Type | Shell and tube |
Water flow | m3/h | 1.6~46 |
Pipe connection | DN | 80~200 |
Cabinet material | Galvanized sheet | |
Unit dimensions L*W*H | mm | 800x500x1200~2800x2100x2150 |
FAQ:
Q1. How long of warranty?
A1. 18 months from delivery.
Q2: How do you ensure the quality of products?
A2: Quality and integrity is our corporate culture, each product will pass strict inspection to the factory.
Q3. OEM provided?
A3. Yes, cusmozied.
Q4: What types of payment do you accept?
A4: We accept T/T, L/C, more pay channels are open. 30% Deposit, 70% balance should be paid before shipment.
