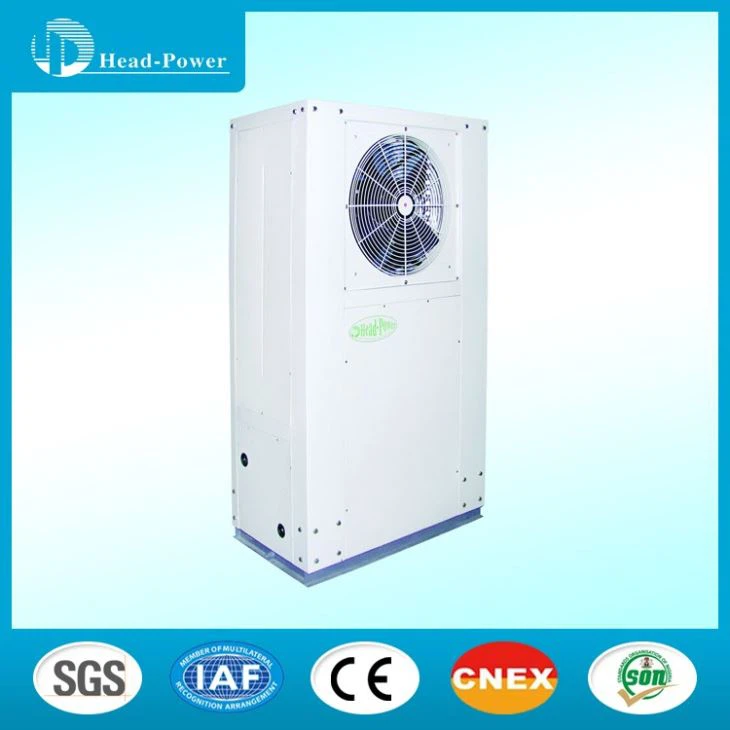

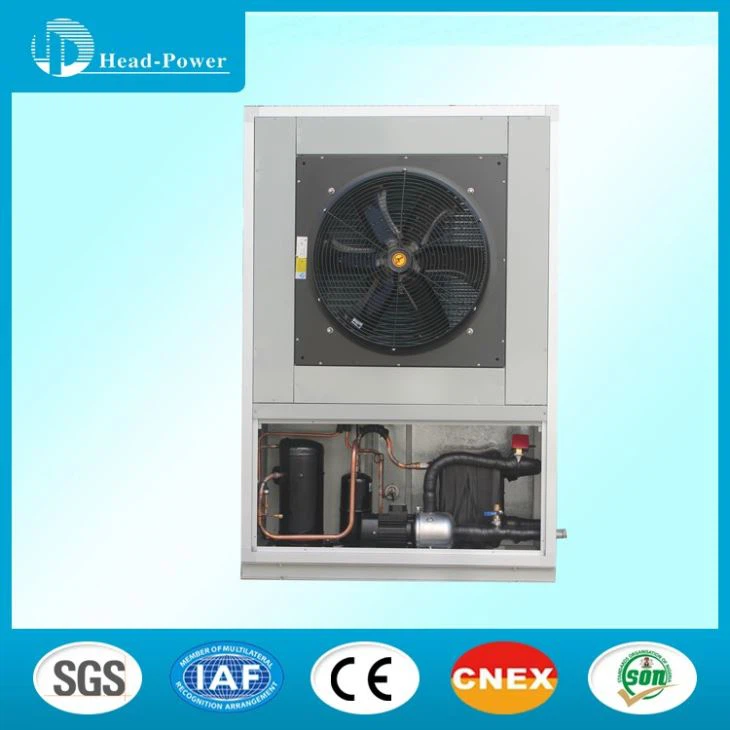

Feature //20kw Air Cooled Liquid Chiller
Options / Accessories
• Soft start
• Power Factor Correction Capacitors
• Low ambient kit
• BMS Interfacing options
• Dual pressure relief valves
• Victaulic coupling
• Flow switch
• Heat recovery option
• Enclosure options
• Sound attenuation options
• Anti-vibration mounts options
• Hydrokits with single and dual pump
• Epoxy Post-coated Dipped Microchannel Coils
| 20kw Air Cooled Liquid Chiller | ||||||
| Model No. | HWAC08 | HWAC10 | HWAC12 | HWAC20 | HWAC25 | |
| Cooling capacity | kW | 21 | 26.4 | 30 | 52.8 | 70 |
| Power Supply | 380V/ 3PH~50HZ | |||||
| Safety devices | High&low pressure switch, anti frozen protector, overload protector, phase order protector, internal overheat protection, water flow switch, etc. | |||||
| Operation control | Microcomputer control automatically, abnormal warning, selfchecking, unit balance operation, remote control (optional), Timer on/off | |||||
| Refrigerant | R407c | |||||
| Volume control | Thermostatic expansion valve | |||||
| Compressor | Type | Hermetic scroll compressor | ||||
| Qty | pcs | 2 | 2 | 2 | 2 | 2 |
| Power | kW | 6.5 | 8 | 10 | 16 | 20 |
| Air side heat exchanger | Fan type | Axial type | ||||
| Air direction | Top discharging | |||||
| Fan power | kW | 0.75 | 0.9 | 1.1 | 0.9*2 | 1.1*2 |
| Water side heat exchanger | Type | Shell and tube | ||||
| Water flow | m3/h | 4 | 4.8 | 6.2 | 10 | 12 |
| Water resistance | kPa | 30 | 30 | 32 | 35 | 35 |
| Pipe connection | inch | DN40 | DN40 | DN40 | DN50 | DN50 |
| Size(L X W X L) | mm | 1600*800*1600 | 1600*800*1600 | 1600*800*1700 | 2100*1000*1950 | 2200*1000*1950 |
