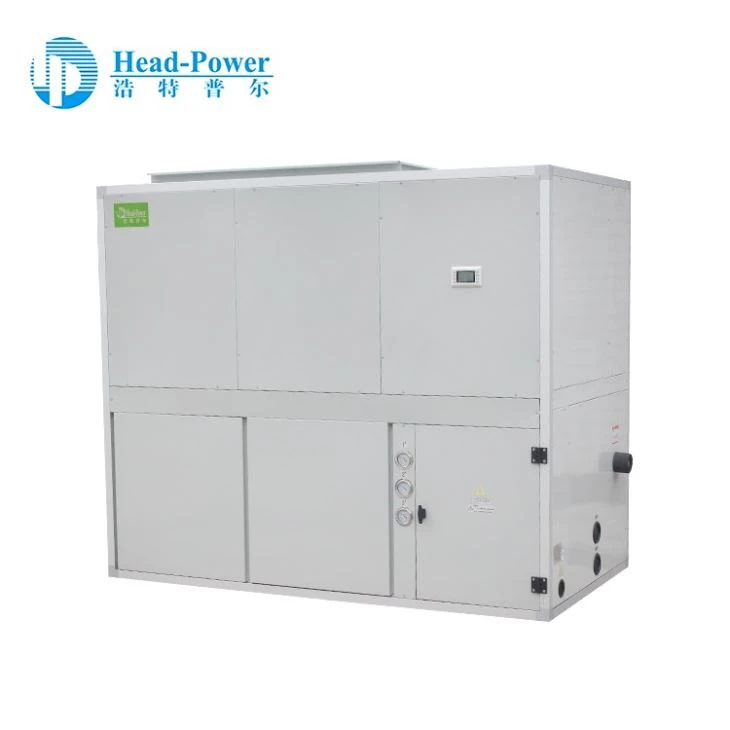

Refrigerant Water-cooled Electrical Cabinet Air Conditioner

belong to water-cooling type, so it need to provide the cooling water to cooling the machines. In this way, it can reduce the cost and improve the efficiency.With the advanced sign idea in this unit, there are double filter in the air inlet of fan, which can improve the resistance to dust and oil pollution ability. So, it’s very suitable to Steel. Plant and textile industries.

Send Inquiry

Chat Now

Product features:

Refrigerant Water-cooled Electrical Cabinet Air Conditioner belong to water-cooling type, so it need to provide the cooling water to cooling the machines. In this way, it can reduce the cost and improve the efficiency.
With the advanced sign idea in this unit, there are double filter in the air inlet of fan, which can improve the resistance to dust and oil pollution ability. So, Refrigerant Water-cooled Electrical Cabinet Air Conditioner is very suitable to Steel plant and textile industries.
Quiet operation. Low noise
Compact design , convenient to maintain
Stable quality and reliable performance.
Intelligent control, high efficiency.

Technical specification:

Water cooled Package Unit(Water-Air)
Model NO.	HWD/HWL
Cooling capacity	kW	10-258
Power supply		220V~380V/3PH/50-60Hz
Fan data	Air flow	m³/h	1350~38500
External static pressure	Pa	0-850
Noise level	dB(A)	48~73
Motor power	kW	0.3~22
Refrigerant	Type	R22/R407c/R410a
Compressor	Type	Type	Hermetic Scroll
Rated power	kW	2.25~66
Water side heat exchange	Type	Type	Shell and tube
Water flow	m³/h	2.3~42
Water pressure drop	mH₂O	2.3~6.3
Pipe connection	in/mm	DN25/32/40/50/65
Air side heat exchanger	Type	Copper tubes with aluminium fins
Unit Dimensions	LWH	mm	750x550x1600~3500x1700x2000
Note:
1. Nominal cooling condition: indoor air temperature 27℃DB/19.5℃WB; seawater inlet/outlet temperature 32℃/37℃.
