Product features:

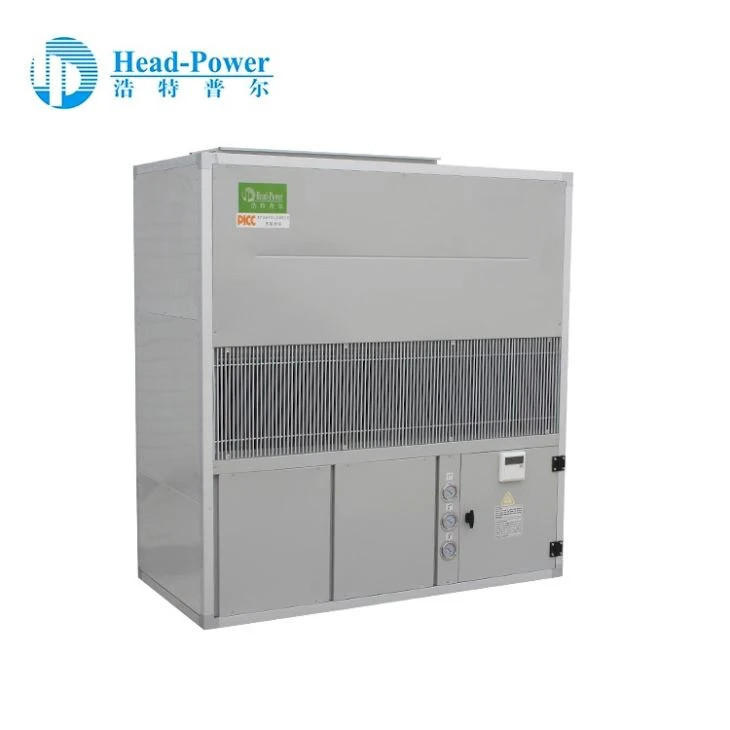

Hospital Ventilator Water Cooled Electrical Package Unit adopted high precision controller.
Hospital Ventilator Water Cooled Electrical Package Unit adopted imported temperature and humidity sensors, micro-computer control system and electrode-type humidifier.
Heater: Heat pump or Electric heater for standard, steam heating coil or hot water heating coil is optional according to user’s demand.
Humidifier:electrode humidifier for standard,steam humidifier is optional according to user’s demand.
Technical specification:
Water cooled Package Unit(Water-Air) | |||
Model NO. | HWD/HWL | ||
Cooling capacity | kW | 10-258 | |
Power supply | 220V~380V/3PH/50-60Hz | ||
Fan data | Air flow | m3/h | 1350~38500 |
External static pressure | Pa | 0-850 | |
Noise level | dB(A) | 48~73 | |
Motor power | kW | 0.3~22 | |
Refrigerant | Type | R22/R407c/R410a | |
Compressor | Type | Type | Hermetic Scroll |
Rated power | kW | 2.25~66 | |
Water side heat exchange | Type | Type | Shell and tube |
Water flow | m3/h | 2.3~42 | |
Water pressure drop | mH2O | 2.3~6.3 | |
Pipe connection | in/mm | DN25/32/40/50/65 | |
Air side heat exchanger | Type | Copper tubes with aluminium fins | |
Unit Dimensions | L*W*H | mm | 750x550x1600~3500x1700x2000 |
Note: | |||
1. Nominal cooling condition: indoor air temperature 27℃DB/19.5℃WB; seawater inlet/outlet temperature 32℃/37℃. | |||
FAQ:
Q1：How about the quality of your product?
A1：Our products strictly manufatured according to national and international standard. We got ISO quality and CE,CCS,SGS…etc.
Q2：What's the payment terms?
A2: Usually T/T, L/C.
Q3：What's the MOQ?
A3：Usually for small units the MOQ is 5 sets, for big one the MOQ can be 1 set.
Q4：What about the warranty?
A4：The warranty is 18months after delivery.
