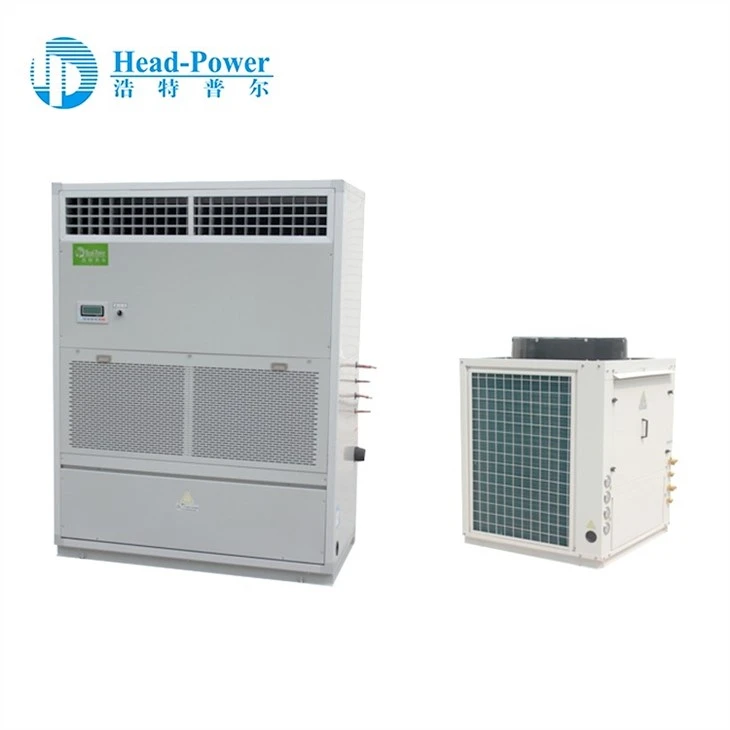

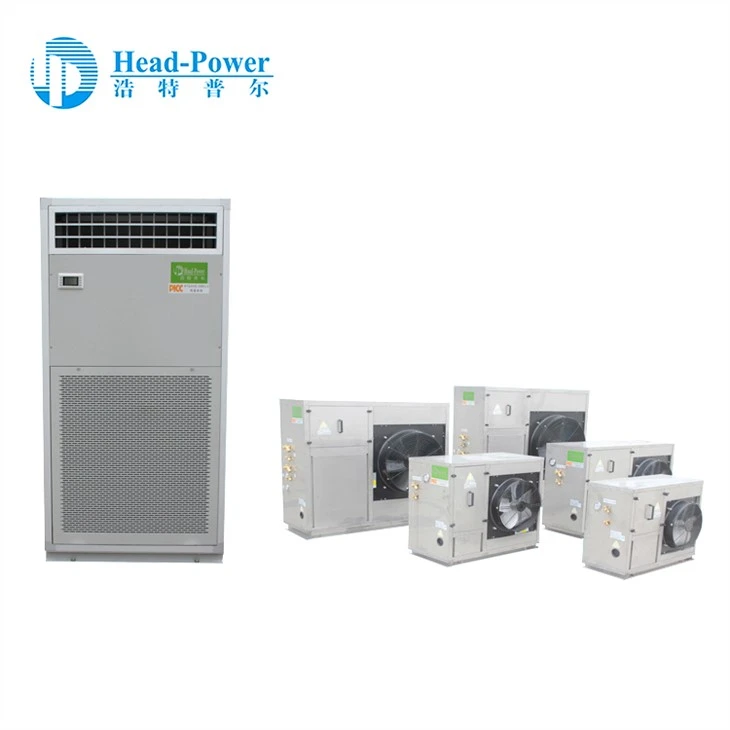

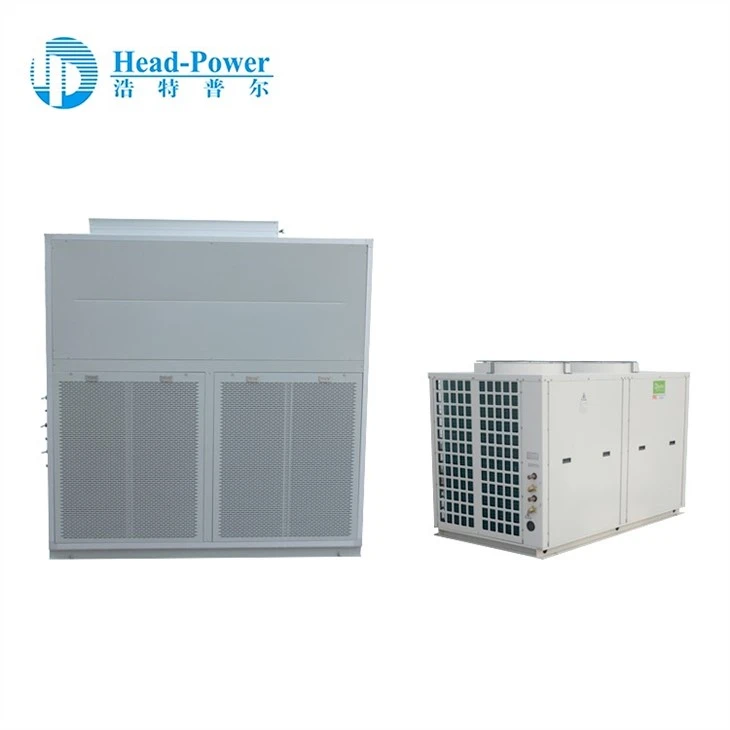

Split Air Supply Air Conditioner

Remote measuring,remote communication, remote control,which can realize the multiple automatic protection and comprehensive self-testing function; Strict process control and famous brand components to ensure high quality and reliability of this product; Multiple self-protection design & visible monitoring interface,RS485 communication port(MODBUS-RTU protocol); LED display,all the settings can be changed at the field;

Send Inquiry

Chat Now

1. Diversified applications.

Split Air Supply Air Conditioner according to different air duct lengths or the direct blowing type, the indoor units can be divided into low and high static pressure types, and the wind pressure of the high static pressure unit can be regulated; anti-mould filter is used, and fresh air can be introduced to ensure health.

2. Comfortable and tranquil.

The indoor unit of Split Air Supply Air Conditioner enjoys ultra-low noise design with high-quality heat and sound insulating material used on the wall; ultra-low noise double air intake centrifugal fan is used with specialized vibration absorption. The fan of outdoor unit is new propeller type, with air flow in contact with blades smoothly, reducing vortex noise.

3. High-quality indoor air.

If air duct is used for air supply, uniform distribution of refrigeration and air quantity can be achieved, and fresh air can be introduced, greatly improving indoor air quality. Split Air Supply Air Conditioner HEPA sterilization device and dust filter are optional by users and can effectively kill the viruses in the air and clean the air, reliving you from air conditioner illness.

Technical specification:

Industrial Split Air Conditioner
Indoor Model No.	HAM / HAD / HAL
Unit Performance	Cooling Capacity	kW	7.8~250
Air Flow	m³/h	1350~35000
Power Supply		220V/380V/415V/440V-3N-50Hz/60Hz
Refrigerant		R22/R407c/R410a/R134a
Indoor Unit	Evaporator		Copper tubes with aluminium fins
Fan and Motor	Fan Type		Ultra-low-noice Centrifugal
Power	kW	0.3~20
Start Method	Direct-drive
Connecting Method		Flare opening
Outdoor Model No.	WS
Outdoor Unit	Compressor	Type	Hermetic scroll compressor
Power	kW	2.25~72
Condenser Type		Copper tubes with aluminium fins
Condenser Fan	Type		Ultra-low Axial fan
Power	kW	0.37~8.8
Connecting Copper Tubes	Gas tubes	Size (mm)	Φ19.1/Φ28
Quantity	1~8
Liquid tubes	Size (mm)	Φ12.7/Φ15.9
Quantity	1~8
Connecting Method	Flare opening
