Product model: HVAC ceiling mounted central air conditioner ,HAD-Indoor unit / SW-outdoor condensing unit
Refrigerant: R134A. R22, R407C, R410A

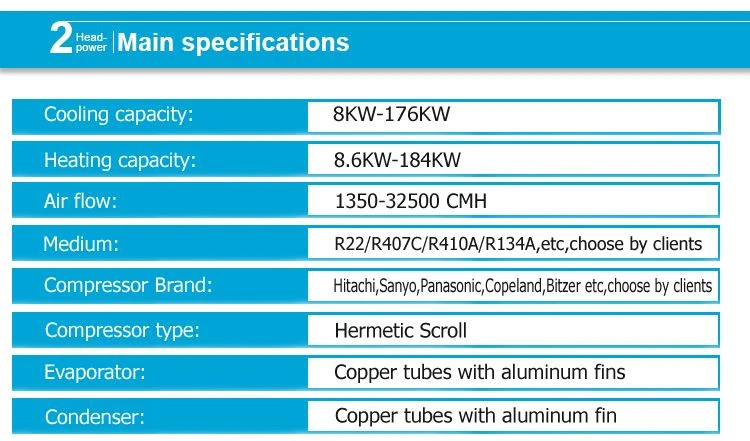

Scope of application: Plastics, electroplating, electronics, medicine and other industries Technical parameters: Refrigeration range: 8 · 6kW ~ 380kW
Features:
HVAC ceiling mounted central air conditioner does not require a cooling tower and a cooling water pump, has a compact structure, is easy to install, and is easy to clean and maintain. It is an air-cooled split machine specially designed and manufactured for small and medium-sized central air conditioners.
HVAC ceiling mounted central air conditioner is equipped with microcomputer control or PLC full touch system, friendly man-machine interface, and can provide various standard communication protocol interfaces to access the building automatic control system.
Ducted Type Air Conditioner(Floor standing mounted type) | |||||||
| Model | HAD36(H) | HAD40(H) | HAD50(H) |  HAD60(H) | |||
| Unit performance | Cooling capacity | kw | 93.6 | 104 | 130 | 156 | |
| Heating capacity | kw | 98 | 110 | 136 | 162 | ||
| *Electric heating | kw | 30 | 32 | 36 | 50 | ||
| Air flow | m3/h | 19500 | 20500 | 25500 | 27000 | ||
| External static pressure | Pa | 260 | 300 | 340 | 350 | ||
| Power Supply | 380V/3N~50Hz | ||||||
| Refrigerant | Type | R22/R407C/R410A/R134A | |||||
| Volume control | expansion valve/capillary tube | ||||||
| Charge | kg | 10*3 | 10*2+5 | 10*4 | 10*5 | ||
| Compressor | Type | flexible hermetic scroll compressor | |||||
| Power | kw | 9*3 | 9*3+3.75 | 9*4 | 9*5 | ||
| Evaporator | Type | copper tube with aluminium fin | |||||
| Fin type | Slotted-type two-way aluminum fin/honeycomb type aluminum fin | ||||||
| Indoor unit | Fan | Type | centrifugal type | ||||
| Driving method | belt-drive | ||||||
| Power | kw | 5.5 | 5.5 | 7.5 | 11 | ||
| Unit Dimension | L | mm | 2100 | 2200 | 2400 | 2550 | |
| W | mm | 1000 | 1000 | 1300 | 1500 | ||
| H | mm | 2200 | 2200 | 2250 | 2400 | ||
| Weight | kg | 580 | 630 | 700 | 815 | ||
| Noise level | dB/(A) | <67 | <68 | <70 | <72 | ||
| Outdoor unit | Compressor | Type | Hermetic Scroll | ||||
| Power | kw | 9*3 | 9*3+3.75 | 9*4 | 9*5 | ||
| Condenser | Type | tube with fin | |||||
| Fin type | Slotted-type two-way aluminum fin | ||||||
| Blower | Type | ultra-low noise axial type | |||||
| Driving method | direct-drive | ||||||
| Power | kw | 1.5*2 | 0.75*3 | 1.1*3 | 1.1*4 | ||
| Unit Dimension | L | mm | 2300 | 2800 | 3000 | 3000 | |
| W | mm | 1100 | 1100 | 1100 | 1100 | ||
| H | mm | 1400 | 1500 | 1500 | 1600 | ||
| Weight | kg | 860 | 920 | 1360 | 1450 | ||
| Noise level | dB(A) | 75 | 76 | 77 | 78 | ||
