Features,120000btu Duct Split Air Conditioner
1. Wide range application
Ducted split air conditioner is suitable for high class commercial and residential buildings, markets, offices, cinemas, restaurants, schools, agencies, etc. Its cooling capacity is 7.8~156kw.
2. Various types
Ceiling mounted duct type (HAD), floor standing duct type (HAL), free standing type (HAM).
3. Quiet and comfortable
Ultra low noise design, thermal and acoustic insulation materials. Outdoor unit uses new type propeller fans, which makes air flow smoothly between the blades, thus reducing noise caused by the eddy current.

2.the main specification of 120000btu Duct Split Air Conditioner
| Air Cooled Split Unit | ||||
| Model No. | HAL12 | |||
| Unit performance | Cooling capacity | kW | 35 | |
| Air flow | m3/h | 6000 | ||
| External static pressure | Pa | 200 | ||
| Power supply | 380V/3N~50Hz | |||
| Refrigerant | R410a | |||
| Indoor unit | Evaporator | Copper tubes with aluminium fins | ||
| Fan and motor | Fan type | centriful type | ||
| Power | kW | 0.75*2 | ||
| Start method | direct drive | |||
| Dimensions(L*W*H) | mm | 1550*800*1750 | ||
| Net weight | kg | 225 | ||
| Noise level | dB(A) | <56 | ||
| Connecting method | Flare opening | |||
| Outdoor unit | Model No. | SW12 | ||
| Compressor | Type | Hermetic scroll compressor | ||
| Power | kW | 5*2 | ||
| Condenser type | Copper tubes with aluminium fins | |||
| Condenser fan | Type | Axial fan | ||
| Power | kW | 1.1 | ||
| Dimensions(L*W*H) | mm | 1150*1050*1150 | ||
| Net Weight | kg | 360 | ||
| Noise level | dB(A) | 69 | ||
| Connecting copper tubes | Gas tubes | Size (mm) | Φ19 | |
| Quantity | 2 | |||
| Liquid tubes | Size (mm) | Φ12.7 | ||
| Quantity | 2 | |||
| Connecting method | Flare opening | |||
| Condensate water pipe(ZG) | mm | DN25 | ||

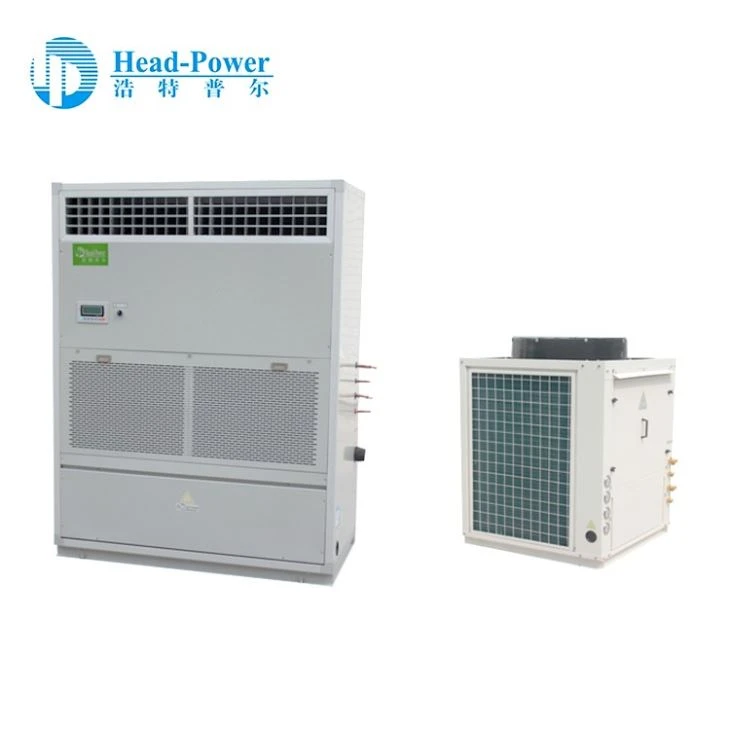

120000btu Duct Split Air Conditioner prouduct details as below:
