Water Cooled Scroll HVAC Chiller System has compact structure, small occupation area and saves room space. When the machine leaves the factory, it has been strictly tested and fixed to complete, and has completely reached the design state. Unit vibration is very little, the foundation does not need special vibration isolation measures, simple installation; Only connect the evaporator interface when installing! Water Cooled Scroll HVAC Chiller System is intelligent program control, simple structure, less wearing parts, no suction, exhaust valve, not sensitive to humidity stroke, very low failure rate. Ammeter, control system insurance, compressor switch button, pump switch button, electronic temperature controller, the safety shoulder fault light, unit start running indicator light, simple operation, easy to use.
Applicable industries:
Leather, fur processing, ink production, aquaculture, electronic industry, circuit board production, electronic core piece manufacturing, chemical industry, paper making, pharmaceutical industry, food processing industry, aluminum profile, aluminum alloy, tempered glass, coated glass production, ultrasonic cleaning, laser technology, welding, plastic molding, injection molding, extrusion, bottle blowing, thermoplastic, mechanical cutting, non-cutting, casting, surface treatment, electroplating, electrophoresis, medical equipment.

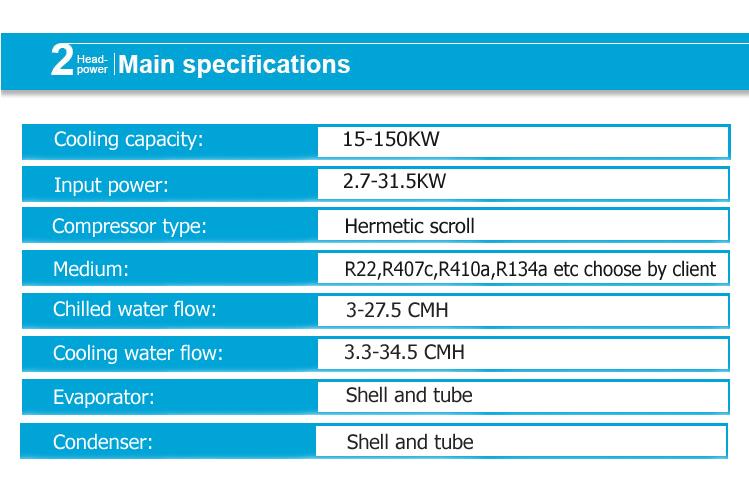

Technical specification:
Water Cooled / Ground Source Scroll Water Chiller | |||
Model NO. | HWWC | ||
Cooling capacity | kW | 15-150 | |
Power supply | 220V-380V-460V/3PH/50Hz-60Hz | ||
Refrigerant | R22/R407c/R410a/R134a | ||
Compressor | Type | Hermetic scroll compressor | |
Safety measures | High&low pressure switch, internal overload protector, insufficient water protector, etc. | ||
Evaporator | Type | Shell and tube type | |
Inlet/Outlet water temp. | ℃ | 12/7℃ | |
water flow | m3/h | 3-27.5 | |
water pipe | DN | 25-50*2 | |
Condenser | Type | Shell and tube type | |
Inlet/Outlet water temp. | ℃ | 30/35℃ | |
water flow | m3/h | 3.3-34.5 | |
water pipe | DN | 25-50*2 | |
Note: | |||
1.Nominal cooling condition: evaporator inlet/outlet water temp. 12/7℃,condenser inlet/outlet water temp. 30/35℃. | |||
2.The unit doesn't include water pump and water tank. | |||
