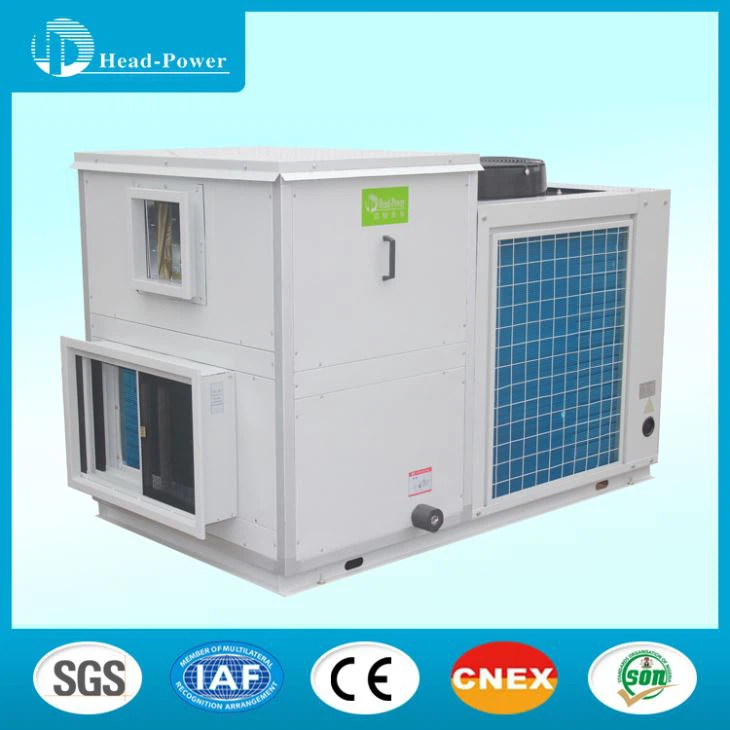

Workshop Cooling Rooftop Air Conditioner System provides a wide capacity. These units are completely assembled, piped and wired at the factory to provide one-piece shipment and rigging. It can offer the perfect combination of superior product quality, high operating efficiency and cost efficiency. The compact design, attractive appearance, outstanding anti-rust cabinet and quiet operation make these units suitable for almost any manufactured or modular homes. The careful design from each part to the whole unit, together with the all-round process test and unit test, offers the high reliability for the whole system. Perfect system protections can guarantee the safety of the system at utmost and get rid of the irreparable damage to the compressor or other critical parts under the harsh working conditions. Compressors are mounted on rubber isolators to reduce the vibration during transportation. Vertical discharge condenser fans direct sound upward and away from any surrounding structures. All sheet metal parts are constructed of commercial grade galvanized steel. After fabricated, each part is thoroughly cleaned to remove any grease or dirt from its surfaces. The external parts are coated with a power[1]paint to assure a quality finish for many years.

Technical specification:

Rooftop Packaged Unit
Model No.	WK
Unit Performance	Cooling capacity	kW	13~300
Air flow	m3/h	3000~50000
External static pressure	Pa	150~1000
Power supply		220/380/460V-3N-50/60Hz
Refrigerant System	Refrigerant		R22/R407c/R410a/R134a
Compressor	Type		Hermetic scroll compressor
Power	kW	4~87
Evaporator	Type		Copper tubes with aluminum fins
Condenser	Type		Copper tubes with aluminum fins
Air supply system	Condenser fan	Type		Ultra-low noise axial type
Drive method		Direct drive
Motor power	kW	0.37~15.4
Evaporator fan	Type		Double-inlet centrifugal
Drive method		Belt drive
Motor power	kW	0.55~22.5
