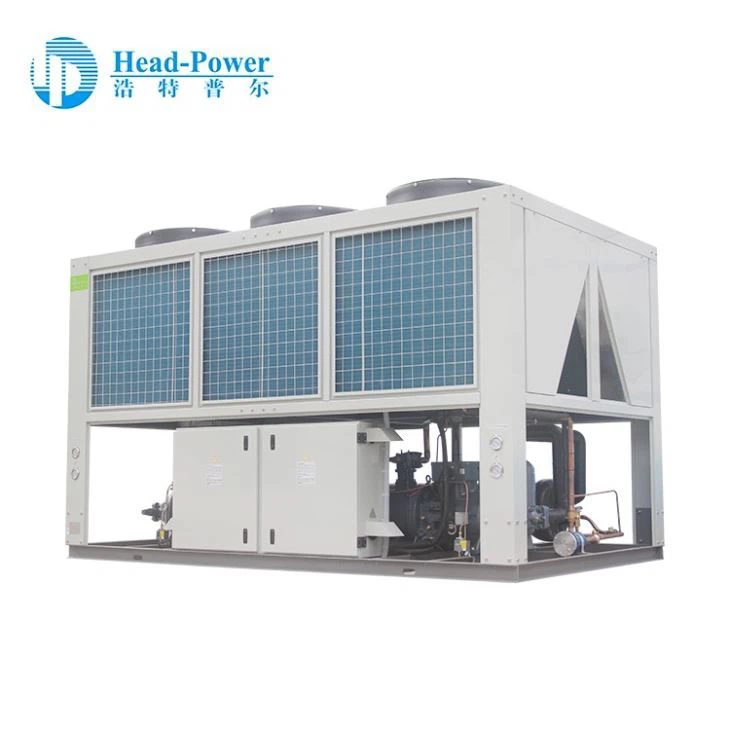

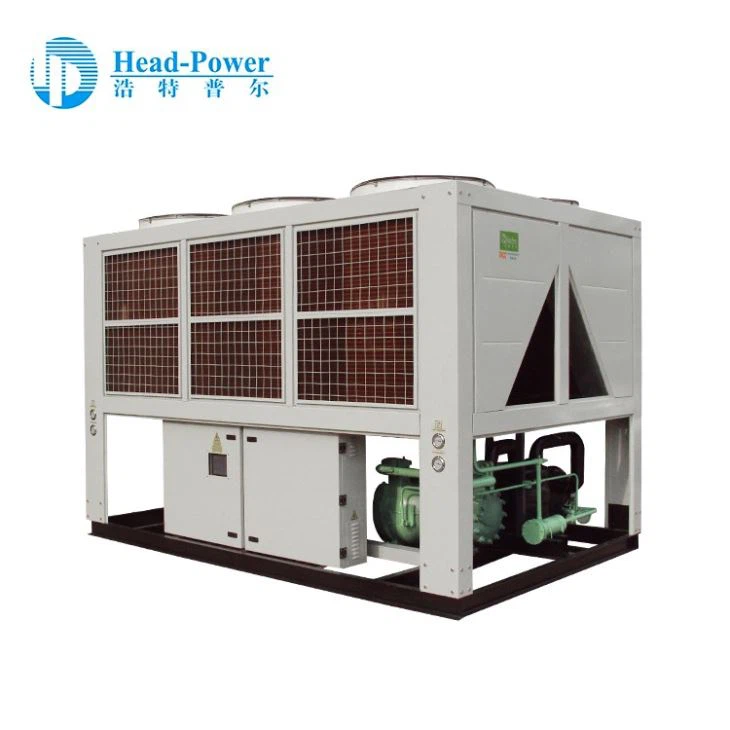

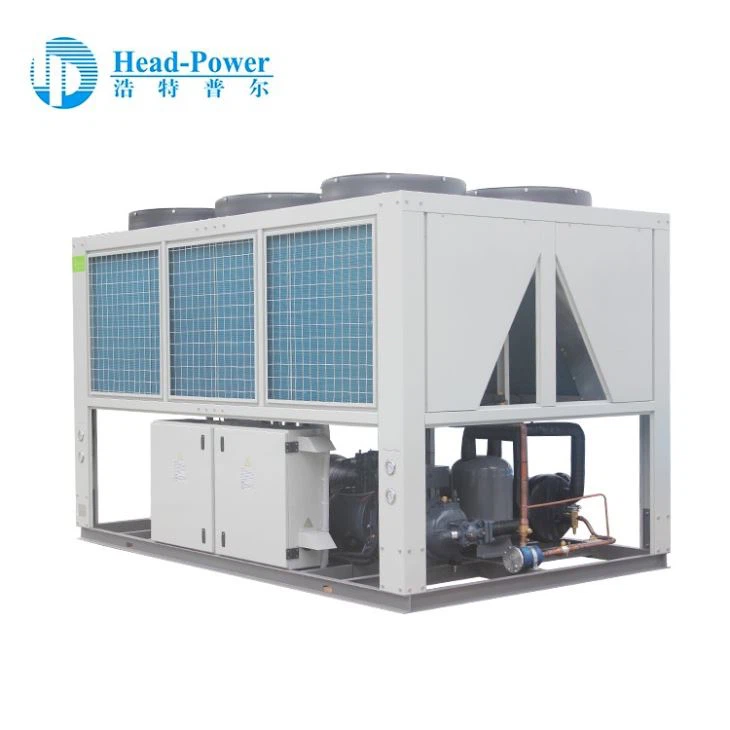

Standard equipment //1250kw Air Cooled Chiller
Control and monitoring system
Variable-speed drive
Hot-dip galvanised base frame
Screw compressor
Precharged with refrigerant.
| 1250kw Air Cooled Chiller | |||
| Model type | HWAL1450 | ||
| Nominal cooling capacity | kW | 1450 | |
| Cooling power input | kW | 510 | |
| Power supply | 380V/3PH/60Hz | ||
| Electric Controller | English display screen, parameters checking/setting, history inquiry, error warning,etc | ||
| Compressor | Type | Semi-hermetic screw compressor | |
| Brand | Hanbell | ||
| Quantity | units | 3 | |
| Energy control | 0-25%-50%-75%-100% | ||
| Refrigerant | Type | R22 | |
| Condenser | Type | Aluminium fins with copper tubes | |
| Condenser fan | Type | Axial fan | |
| Quantity | units | 2.2*24 | |
| Water side heat exchanger | Type | Shell and tube | |
| Chilled water flow | m3/h | 250 | |
| Connection pipe | mm | DN125*3 | |
| Water resistance | kPa | 55 | |
| Unit dimensions | Length | mm | 5200*3 |
| Width | mm | 2150 | |
| Height | mm | 2250 |
the specification of 1250kw Air Cooled Chiller
