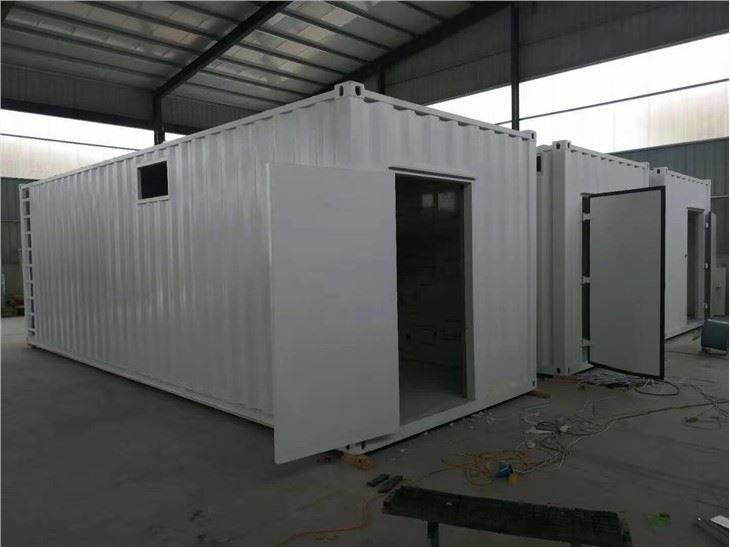

The mobile container PCR laboratory is built in strict accordance with the standards of biosafety laboratories and is equipped with various advanced instruments. It pays attention to ensuring the safety of laboratory personnel. At the same time, it has the characteristics of flexibility and rapid response, which can assist medical personnel in rapid detection work.

Mobile PCR shelter laboratory design plan-implementation standards:

Design and production standard of shelter container:

Medical Biosafety Level 2 Laboratory Building Technical Standard T CECS662G2020 (We generally produce Level 3 laboratories)

Design in strict accordance with the requirements of the PCR laboratory, and set up a decontamination room, highly integrated water, electricity, wind, equipment, etc.; the cabinet is equipped with lighting, ultraviolet lamps, cabinets, equipment, refrigerators, etc.; the air supply pipe is integrally formed in the cabinet , Connected outside the box by special components; The exhaust is set separately, and the air column is integrated with the exhaust fan; When used as a vehicle-mounted laboratory, the drainage device adopts a collection device and is regularly taken out through the dirt outlet;

When transported to the site for fixed use, the drainage pipeline is connected to the biological wastewater treatment tank of the unit. 98% of the construction work is completed in the factory, and only a flat site is needed for transportation to the site, and the necessary water and electricity docking can complete the installation.

A sterile laboratory is an amplification testing laboratory and has high requirements for pollution control. FNLAB strictly follows the requirements of the standards and specifications to help customers do DNA laboratory design:

1. Standard four-zone separation, negative pressure control, separation of people flow and material flow. According to the experimental process, the DNA laboratory is divided into four independent experimental areas for reagent preparation, specimen preparation, DNA amplification, and product analysis. There is an overall working corridor in the entire area, and a buffer zone is set between each independent laboratory area and the corridor. Through cutting-edge electromechanical automatic control technology (variable air volume + indoor pressure sensor + PLC + user touch screen), the air flows to reagent preparation → specimen preparation → DNA amplification → product analysis to avoid contamination of personnel, environment and front-end laboratory tests by amplified products .

Drawing reference:

Drawing of PCR lab
