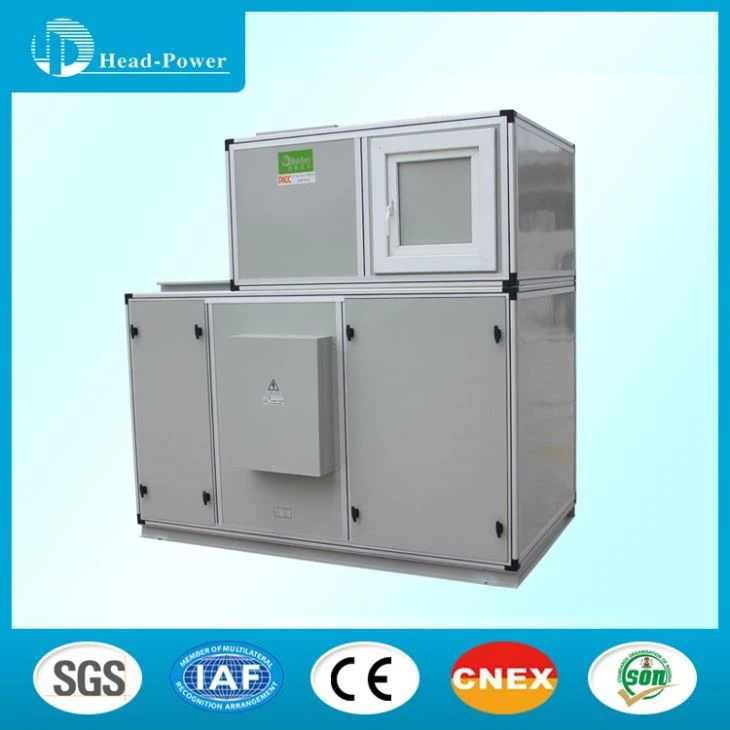

Heat recovery industry cleaning air conditioner

Strictly designed under ISO standard and meet GMP requirement, clean room indoor temperature and relative humidity control must be required by manufacturing process, right positive/negative pressure control also is very important to prevent air contamitation.

Send Inquiry

Chat Now

Product Features:

HIGHLY QUALITY COMPONENTS AND RELIABLE PERFORMANCE
Heat recovery industry cleaning air conditioner use high-effiency scroll compressor and high quality world known brand cooling parts, which ensures units' reliable performance.

STANDARD FEATURES
• Easily accessible system components
• Factory micro-programmed LED controller.
• Heavy duty mounting chassis for the whole unit with lifting holes
• Anti-vibration mounting compressor and centrifugal fan
• Weather-proof, polyester epoxy powder electrostatic paint oven-baked finish for sheet metal and base frame
• Compressor, fan motor inner protect

• HEPA air filter

• Treated anti-corrosion protection for coils (blue fins) for copper/aluminum coils condensor and evaporator

Technical specification:

Air cooled / Water cooled type cleaning air conditioner
Model No.		HWC / HAC
Installation type		Horizontal / Floor standing
Unit performance	Cooling capacity	kW	7.8-240
Air flow	m³/h	1700-36000
External static pressure	Pa	700-1000
Noise level	dB(A)	71-82
Power supply		220/380V 50/60HZ 3N
Refrigerant	type		R22 R407c R410a R134a
control		Thermal expansion valve
Compressor	type		Hermetic scroll type
quantity	pcs	1-6
power	kw	2.25-54
Indoor unit	Evaporator	type		Copper tubes with aluminium fins
Fan and motor	type		Centrifugal type
drive type		Belt-drive
motor power	kW	0.3-11
Air filter		G4/F7/H13
Weight	kg	70-800
Dimension(L×W×H)	mm	Refer to drawing
Ourdoor unit	Model		SW
condenser	type		Copper tubes with aluminium fins
condenser fan	type		axial type
power	kw	0.37-6.6
weight	kg	100-1300
dimension(L×W×H)	mm	Refer to drawing
Connecting method		Direct-drive
Note:
1. Nominal cooling condition: indoor air temperature 27℃DB/19℃WB; outdoor air temperature 35℃DB/24℃WB.
