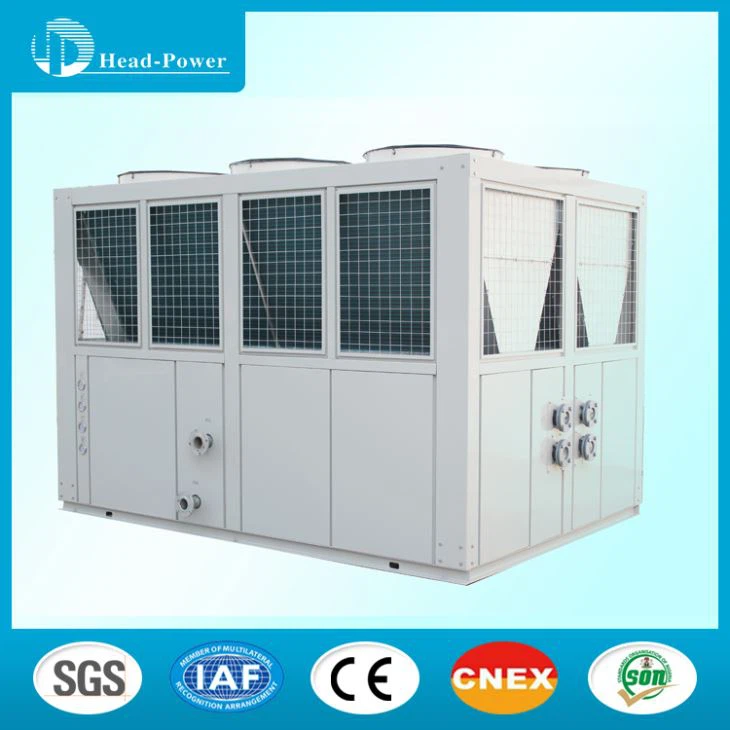

a. Heat Pump Air To Water Scroll Chiller is modular design: Small footprint, light weight, easy unit transportation and lifting.
b. Heat Pump Air To Water Scroll Chiller is fully automatic control: microcomputer control, complete protection functions of the unit, fault self-checking system, automatic balance compressor wear and other functions.
c. Heat Pump Air To Water Scroll Chiller is beautiful Appearance: The unit has strong anti-corrosion and anti-rust capabilities. It is not necessary to build a dedicated machine room when it is placed outdoors.
d. Intelligent defrosting: The refrigeration system is completely separated between the module and the module, and the operation of the system is controlled independently.
e. Intelligent anti-freeze: using double-stage automatic frost protection.
f. Easy to use: Units are strictly tested and the appropriate amount of refrigerant and refrigeration oil are added. All the protection parameters have been set. The field installation requires only the power and water supply lines to be connected. Only use the computer controller.
Technical specification：
Air Cooled Scroll Water Chiller | ||
Model No. | HWAC | |
Cooling capacity | kW | 7-300 |
Power Supply | 220V-380V-460V/3N/50Hz-60Hz | |
Safety devices | High&low pressure switch, anti frozen protector, overload protector, phase order protector, internal overheat protection, water flow switch, etc. | |
Operation control | Microcomputer control automatically, abnormal warning, selfchecking, unit balance operation, remote control (optional), Timer on/off | |
Refrigerant | R22/R407c/R410a/R134a | |
Volume control | Thermostatic expansion valve | |
Compressor | Type | Hermetic Scroll Compressor |
Power | kW | 2.23-80 |
Air side heat exchanger | Fan type | Axial type |
Air direction | Top discharging | |
Fan power | kW | 6~30 |
Fan quantity | pcs | 2~6 |
Water side heat exchanger | Type | Shell and tube |
Water flow | m3/h | 1.6~46 |
Pipe connection | DN | 80~200 |
Cabinet material | Galvanized sheet | |
Unit dimensions L*W*H | mm | 800x500x1200~2800x2100x2150 |
FAQ:
Q1. Are you a manufacturer or trading company?
A1. We are a manufacturer which specialized in produce HVAC product since 2001.
Q2: How do you ensure the quality of products?
A2: Quality and integrity is our corporate culture, each product will pass strict inspection to the factory.
Q3. What's the terms of delivery?
A3. EXW, FOB, CFR, CIF.
Q4: What types of payment do you accept?
A4: We accept T/T, L/C, more pay channels are open. 30% Deposit, 70% balance should be paid before shipment.
