Name: 170KW Air Source Heat Pump Heater
Brand: HEAD-POWER
SKU: 90844395

170KW Air Source Heat Pump Heater

Air source heat pumps are classified according to heating methods: 1. Direct heating type: heating cold water to set temperature at one time 2. Circulating type: heating the cold water to the set temperature in multiple cycles According to the field of use: Air source heat pumps are available in domestic and commercial types. It is generally considered that machines below 3P are household type, and those above 3P are commercial. According to the working voltage is divided into: Single phase 220V, three phase 380V According to the type of condensing air outlet of the machine: top discharge and side discharge.

Send Inquiry

Chat Now

Air Source Heat Pump Water Heater Introduction:

170KW Air Source Heat Pump Heater. The so-called modular heat pump refers to a heat pump unit consisting of several heat pump units (with independent refrigeration circuit, independent evaporation, condensation, independent frame, and even independent). The control panels are connected in parallel, and the combination of each unit is flexible and convenient. The failure of any unit does not affect the operation of the remaining units. The rated cooling capacity of each unit is 55KW. HEAD-POWER produces more modular heat pump units, while the integrated heat pump unit looks at the combined unit and the overall frame from the appearance. Although there are multiple compressors inside, even more than two refrigeration circuits, they are generally no longer Decomposition, the main advantages of the modular heat pump unit are low noise and low vibration. Due to the large number of refrigeration circuits in the system, the influence of the system on the water temperature during winter defrosting is small, 170KW Air Source Heat Pump Heater system performance is good, and the transportation is convenient for lifting and installation.

At present, in most developed countries of the European Union, such as Australia, the United Kingdom, France, Germany, etc., heat pump products have entered most homes and factories/commercial/civil buildings. Mainly used in household water, residential, villas, schools, hotels, hotels, swimming pools, hospitals, saunas, factories, mines, leisure centers and other heating systems.

Air Source Heat Pump Heater.

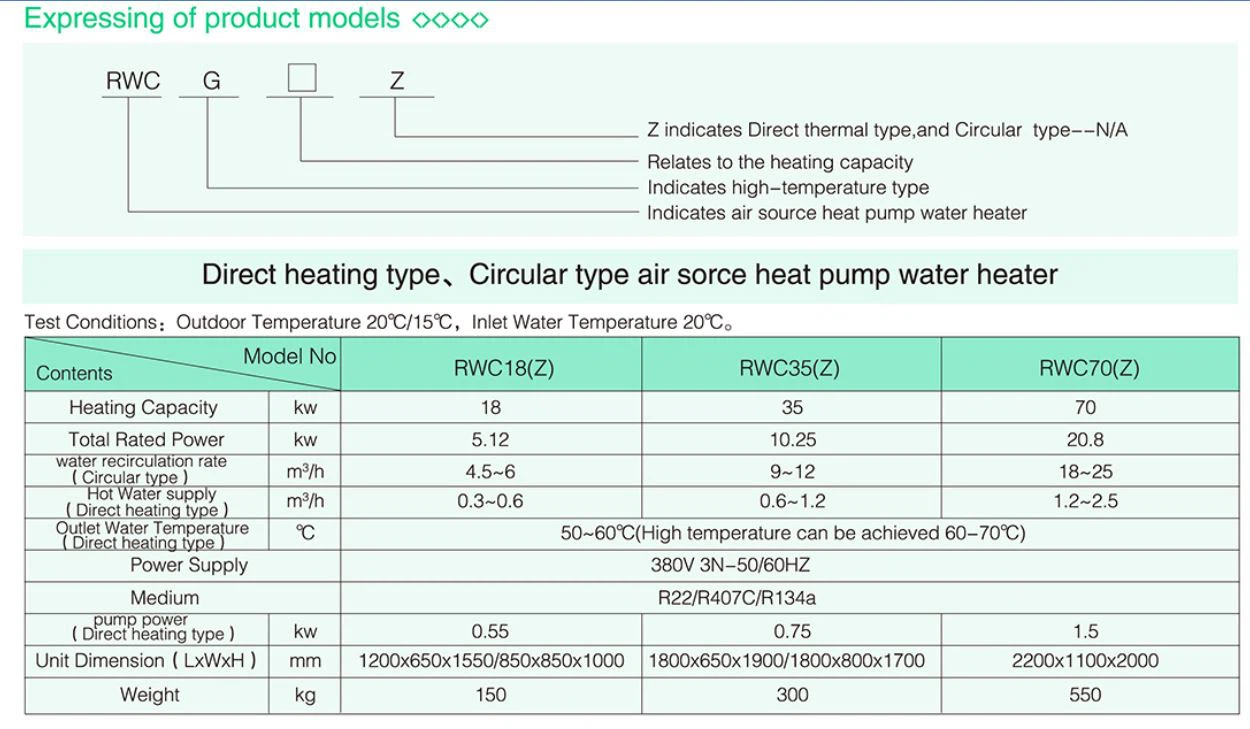

Model type			RWC150
Quantity			4
Heating capacity		kw	152
Total power consumption		kw	3.8(15-50c)
Hot water supply (direct heating)		m3/h	Hot water volume
Cycling water flow (water cycling)		m3/h	26
Voltage			380V 3N~50Hz
Refrigerant			R407C
Protection devices			Protections for high and low pressure, overload, overheat, defrost automatically, warn errors,etc
Compressor	Type		Copeland Scroll compressor
	Quantity	Unit	4
	Power	kw	36
Fan	Type		Axial type
	Power	kW	1.1*4
	Air blowing		Top blowing
Hot water pipe size		mm	DN50 (water cycling)
Dimensions(LWH)		mm	220021002200
Net weight		kg	1500

Note:
1. Testing condition: outdoor ambient temperature DB20/WB15℃, inlet water temperature 20℃, for direct heating type, the outlet water temperature is 60 ℃, Use R134A.

2. The heat pump doesn't include water pump and water tank.
