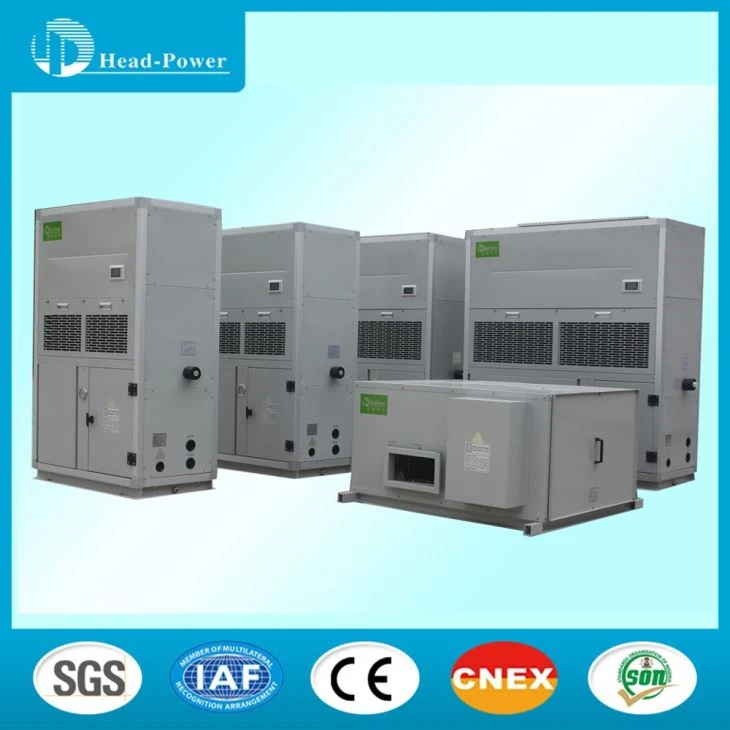

5ton marine self contained air conditioner
| SeaWater Cooled Packaged Unit | ||||
| Model No. | MWL060 | |||
| Unit performance | Cooling capacity | BTU | 60000 | |
| Air flow | m3/h | 2800 | ||
| External static pressure | Pa | 200 | ||
| Noise level | dB(A) | 52 | ||
| Power supply | 400V/3PH/50Hz | |||
| Refrigerating system | Compressor | Type | Hermetic scroll type | |
| brand | Panasonic | |||
| Power | kW | 4 | ||
| Condenser | Type | Nickel white copper pipe + stainless steel end cover | ||
| Water flow | m3/h | 3.8 | ||
| Water pressure drop | mH2O | 25 | ||
| Connecting pipe | mm | 32 | ||
| Evaporator | Type | Copper tube with aluminium fin | ||
| Refrigerant | Type | R404A | ||
| Volume control | expansion valve | |||
| Air supply system | Blower | Type | Low-noise centrifugal | |
| Driving method | directly drive | |||
| Motor | Power | kW | 0.75 | |
| Unit Dimensions | L*W*H | mm | 1000*550*1600 | |
