Name: 50tr Water Cooled Package Ac
Brand: headpower
SKU: 93378559

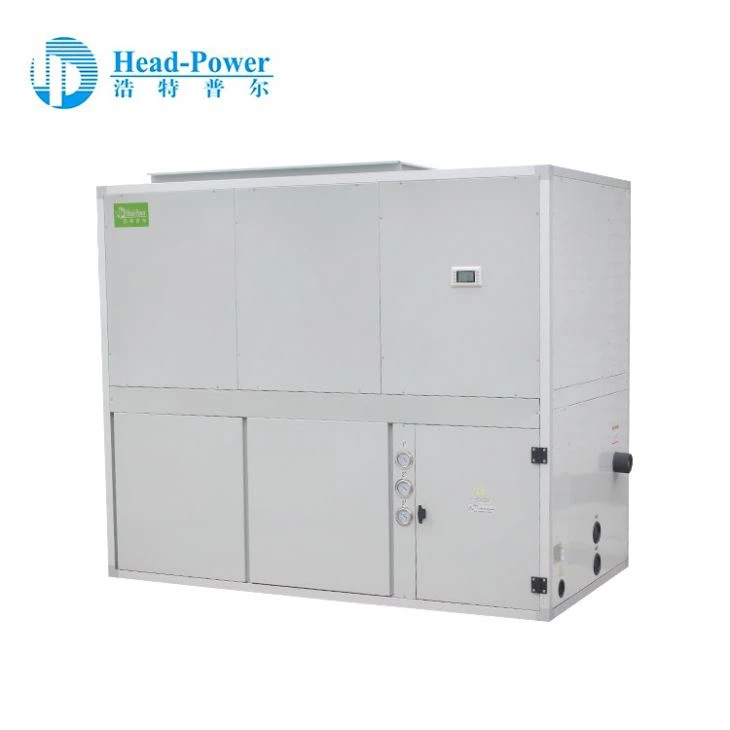

50tr Water Cooled Package Ac

How Water-Cooled Air Conditioning Systems Work Instead of circulating air through 18 inch air ducts, chilled water is circulated through one inch pipes, which fit easily into very tight spaces. Chilled water is circulated through a water coil equipped air handler to cool the living space, and at the same time heat is absorbed from the air and is pumped outside for removal.

Send Inquiry

Chat Now

Features//50tr Water Cooled Package Ac

Headpower water-cooled packaged AC are designed for duct type air-conditioning system in commercial and industrial application.

High Efficiency Hermetic Scroll Compressor

■ Quiet operation.

■ Excellent reliability with 70% fewer moving parts than comparably sized reciprocating compressors.

■ Greater capability at handling liquid and debris in the system.

■ High efficiency performance.

Enhanced Copper Tubes Condenser

Extra-high efficiency is attained by special designed shell-and-tube condenser with "T" groove copper tube surfaces for superior refrigerant-water heat transfer.

50tr Water Cooled Package Ac specification as below:

Model No.				HWL630
Unit performance	Cooling capacity		kW	185
	Air flow		m3/h	33000
	External static pressure		Pa	400
	Noise level		dB(A)	69
	Power supply			380V/3PH/50Hz
Refrigerating system	Compressor	Type		Hermetic scroll type
		Power	kW	40
	Condenser	Type		Shell and tube
		Water flow	m3/h	38
		Water pressure drop	mH2O	5.6
		Connecting pipe	mm	65+50
	Evaporator	Type		Copper tube with aluminium fin
	Refrigerant	Type		R22
		Volume control		expansion valve
Air supply system	Blower	Type		Low-noise centrifugal
		Driving method		belt drive
	Motor	Power	kW	15
Unit Dimensions		LWH	mm	240021002200
