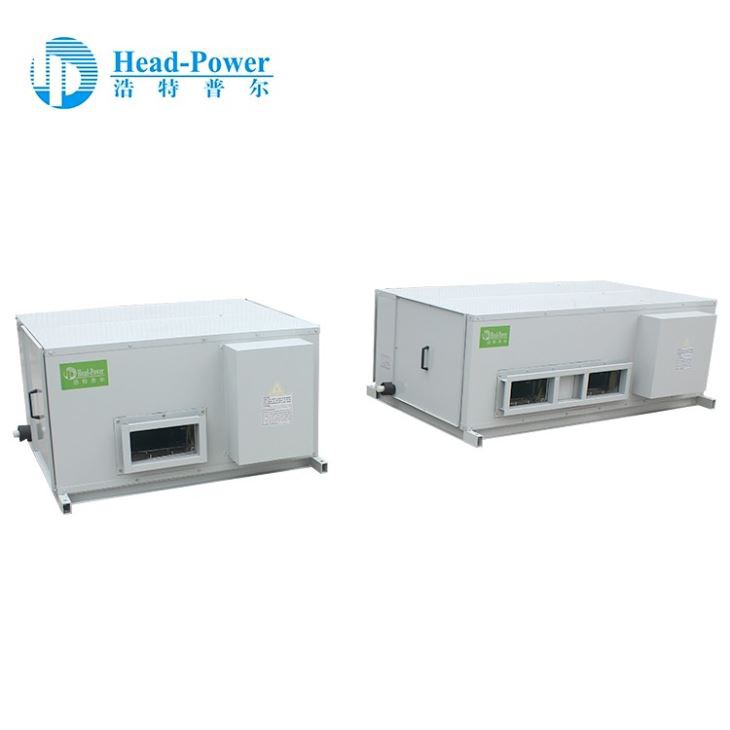

5 ton 220v 50hz water cooled air conditioner
| SeaWater Cooled Packaged Unit | ||||
| Model No. | MWL060 | |||
| Unit performance | Cooling capacity | BTU | 60000 | |
| Air flow | m3/h | 2800 | ||
| External static pressure | Pa | 200 | ||
| Noise level | dB(A) | 52 | ||
| Power supply | 400V/3PH/50Hz | |||
| Refrigerating system | Compressor | Type | Hermetic scroll type | |
| brand | Panasonic | |||
| Power | kW | 4 | ||
| Condenser | Type | Nickel white copper pipe + stainless steel end cover | ||
| Water flow | m3/h | 3.8 | ||
| Water pressure drop | mH2O | 25 | ||
| Connecting pipe | mm | 32 | ||
| Evaporator | Type | Copper tube with aluminium fin | ||
| Refrigerant | Type | R404A | ||
| Volume control | expansion valve | |||
| Air supply system | Blower | Type | Low-noise centrifugal | |
| Driving method | directly drive | |||
| Motor | Power | kW | 0.75 | |
| Unit Dimensions | L*W*H | mm | 1000*550*1600 |
5 Ton 220v 50hz Water Cooled Air Conditioner Debugging of Air Conditioning System
When the installation of air conditioning system, water system, air duct system, refrigerating system and electrical system is finished, then you can debug the air conditioning system.
5 Ton 220v 50hz Water Cooled Air Conditioner Preparation
Prepare the necessary tools and instruments, such as the refrigerant pressure gauge (composite gauge), anemometer, noise meter, digital thermometer, clamp Meter, multimeter, etc.. When water system pressure test has finished, the pipe should be cleaned repeatedly several times. Check water system, air conditioner, air duct system and electrical system thoroughly to see whether they meet the design requirements.
