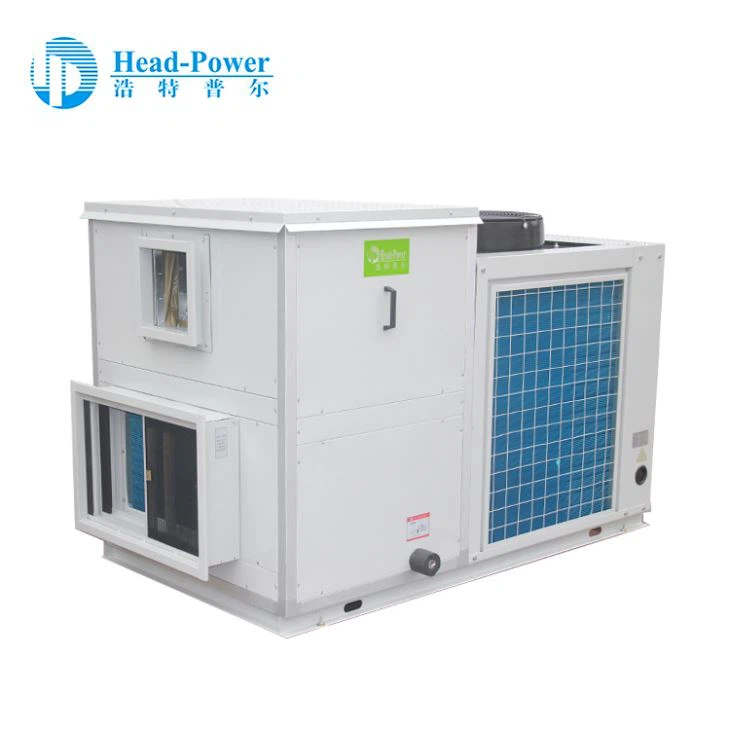

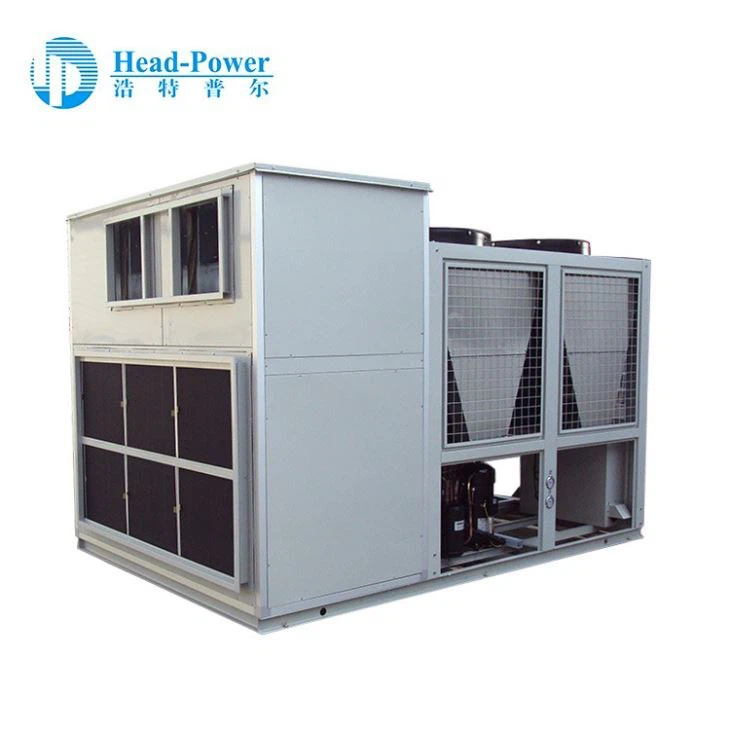

Uv Light Hvac System Rooftop Air Cooler

• All units are factory assembled, internally wired, fully charged refrigerant. • The Rooftops has provisions for forklift and crane lifting. On arrival to the job site they are ready to be lifted to their operating position through the lifting supports available on the units. Only connect the wires of power supply, and no need to connect any signal wires. • Quick release fasteners or removable the access doors on the compressor, fan motor, filter, and electric box sections, provide convenient access to system components for maintenance and service. • The unit provides external pressure gauge for convenient and fast checking system pressure without removing the panel. • If the unit is in running with abnormal operation, the controller will show the error code for easy troubleshooting. • Standard washable filter, easy to clean.

Send Inquiry

Chat Now

Product feature:

• Uv Light Hvac System Rooftop Air Cooler is factory assembled, internally wired, fully charged refrigerant.
• Uv Light Hvac System Rooftop Air Cooler has provisions for forklift and crane lifting. On arrival to the job site they are ready to be lifted to their operating position through the lifting supports available on the units. Only connect the wires of power supply, and no need to connect any signal wires.
• Quick release fasteners or removable the access doors on the compressor, fan motor, filter, and electric box sections, provide convenient access to system components for maintenance and service.
• Uv Light Hvac System Rooftop Air Cooler provides external pressure gauge for convenient and fast checking system pressure without removing the panel.
• If the unit is in running with abnormal operation, the controller will show the error code for easy troubleshooting.
• Standard washable filter, easy to clean.

Product feature:

Rooftop Packaged Unit
Model No.	WK
Unit Performance	Cooling capacity	kW	13~300
Air flow	m3/h	3000~50000
External static pressure	Pa	150~1000
Power supply		220/380/460V-3N-50/60Hz
Refrigerant System	Refrigerant		R22/R407c/R410a/R134a
Compressor	Type		Hermetic scroll compressor
Power	kW	4~87
Evaporator	Type		Copper tubes with aluminum fins
Condenser	Type		Copper tubes with aluminum fins
Air supply system	Condenser fan	Type		Ultra-low noise axial type
Drive method		Direct drive
Motor power	kW	0.37~15.4
Evaporator fan	Type		Double-inlet centrifugal
Drive method		Belt drive
Motor power	kW	0.55~22.5
