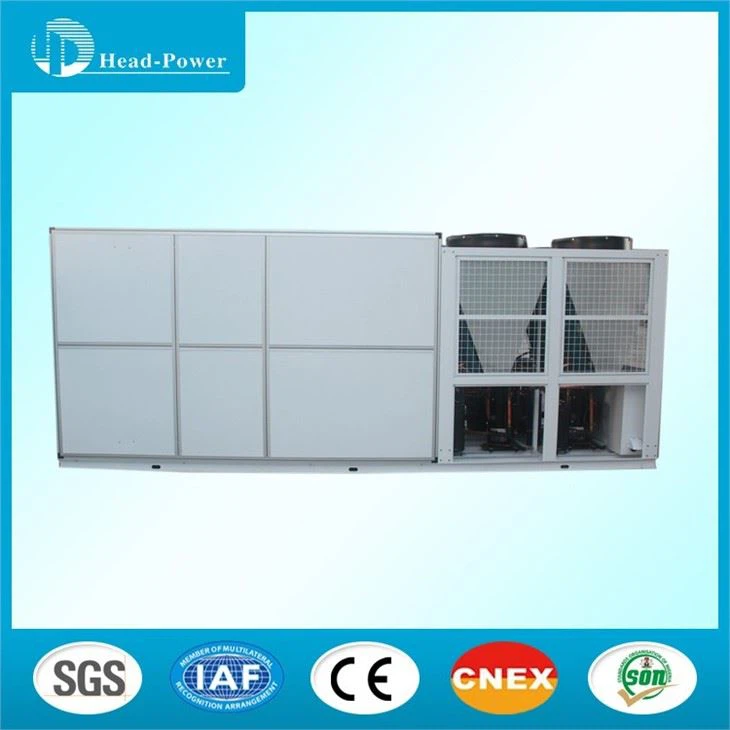

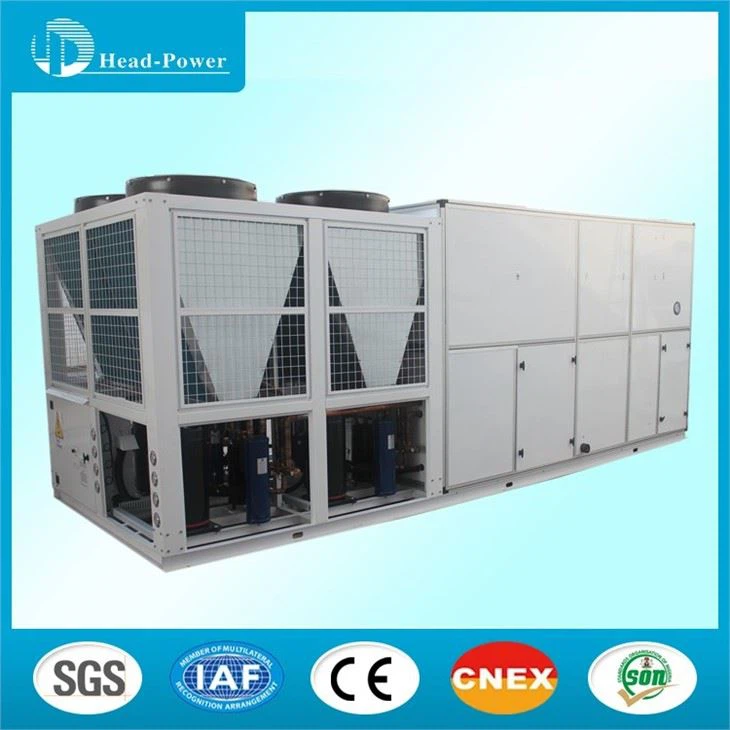

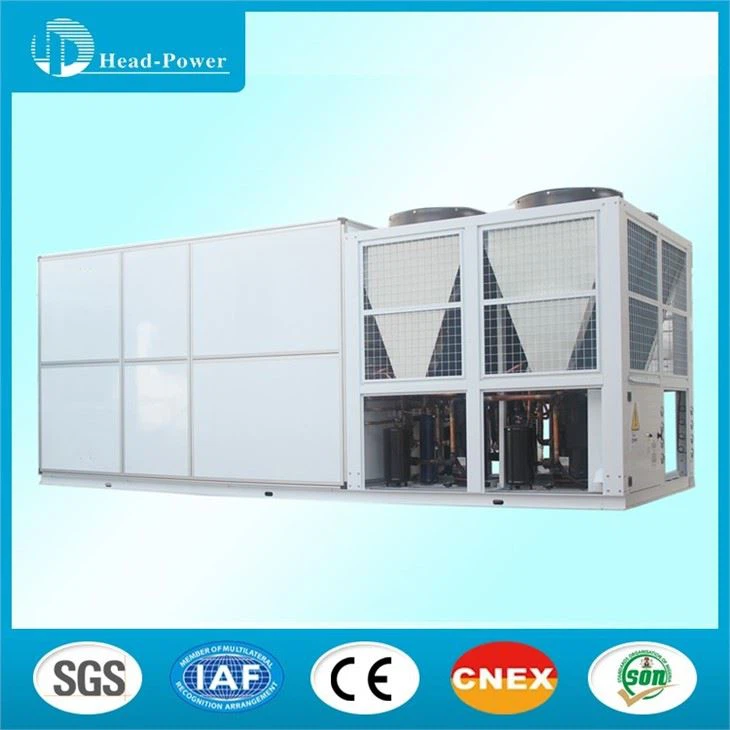

Ocean Engineering Marine Air Conditioner

Name: China Customized Ocean Engineering Marine Air Conditioner Manufacturers - Low Price - Head-Power
Brand: Head-Power
SKU: 121029184

Ocean Engineering Marine Air Conditioner. DX rooftop air conditioner,Building on our innovative and award-winning heating and DX cooling packaged rooftop platform, comes the new technical rooftop air handler. Combined with all functions air-cooled chillers, HEAD-POWER offers engineers and building owners a superior single-source chilled water solution. Capitalize on the industry-leading 22+ IPLV performance of a HEAD-POWER air-cooled chiller and combine it with HEAD-POWER AND SIUKONDA flexible options to precisely match your application needs.

Send Inquiry

Chat Now

Ocean Engineering Marine Air Conditioner Rooftop air conditioner for marine engineering features :

Marine engineering MWKL Series Air Cooled Cooling Type、MWKLD Series Air Cooled Cooling and Electric Heating Rooftop Air Conditioners

Model Type				WKL15		WKL20		WKL25		WKL30		WKL36
				WKLD15		WKLD20		WKLD25		WKLD30		WKLD36
System Characters	Cooling Capacity		KW	40		54		68		80		98
	Electric Heating Capacity		KW	24		36		45		45		54
	Air Volume		m³/h	8800		10800		12600		16800		19200
	External Static Pressure		Pa	250	400	300	450	350	500	350	500	400	550
	Noise Level		dB（A）	68	72	71	74	73	75	75	77	76	78
	Temperature Range and Accuracy			18℃～30℃±1℃
	Power Supply			3N～50HZ 380V
	Total Power	Cooling	KW	15.1	15.8	19.8	20.8	25.4	26.4	30	32	37.5	37.5
		Heating	KW	26.2	27	39	40	49	50.5	50.5	52.5	56	56
Refrigerating System	Refrigerant	Type		R22
		Way of Throttling		Outside Balanced Thermal Expansion Valve
	Compressor	Type		Hermetic Scroll Compressor
		Power	KW	3.75×3		3.75×4		9×2		9×2+3.75		9×3
	Evaporator	Type		Tube with Fins
		Fin Type		Slotted-type Two-way Aluminum Fins
	Condenser	Type		Tube with Fins
		Fin Type		Corrugated Aluminum Fins
Air Sending System	Condenser Fan	Type		Ultra-low-noise Axial Type
		Drive Method		Direct-drive
		Motor Power	KW	1.1		0.75×2		0.82×2		1.1×2		1.5×2
	Evaporator Fan	Type		Ultra-low-noise Double-inlet Centrifugal Type
		Drive Method		Belt Transmition
		Motor Power	KW	2.2	3	3	4	3	4	5.5	7.5	5.5	7.5
Heater		Type		Electric Heating
		Power	KW	24		36		45		45		54
Air Filter				Nylon Bump Net
Dimensions		Length	mm	2000		3200		3200		4000		4000
		Width	mm	1150		1600		1600		1600		1600
		Height	mm	1620		1800		1800		2160		2160
Weight			kg	860		900		920		2100		2160
MOQ			units	2
Delivery Time			days	35-40
