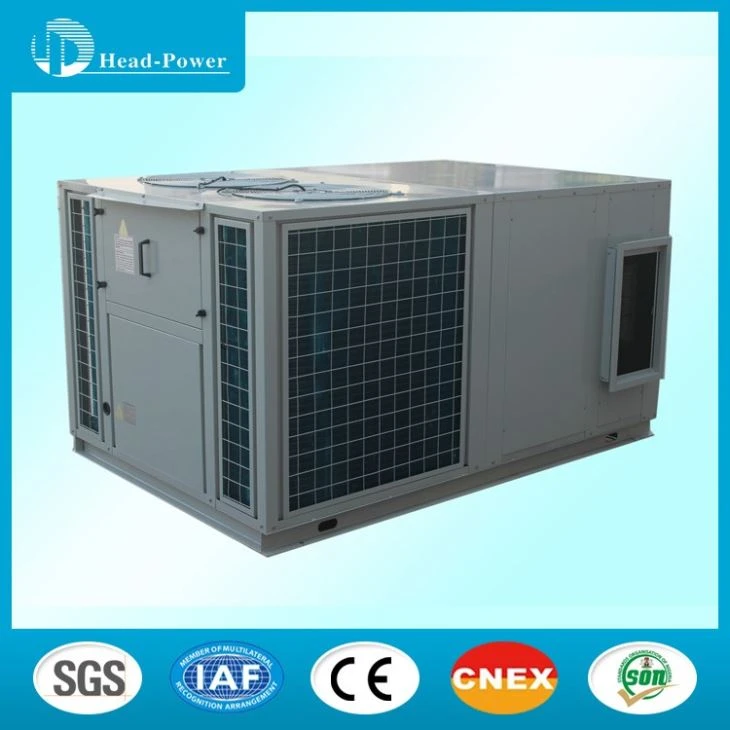

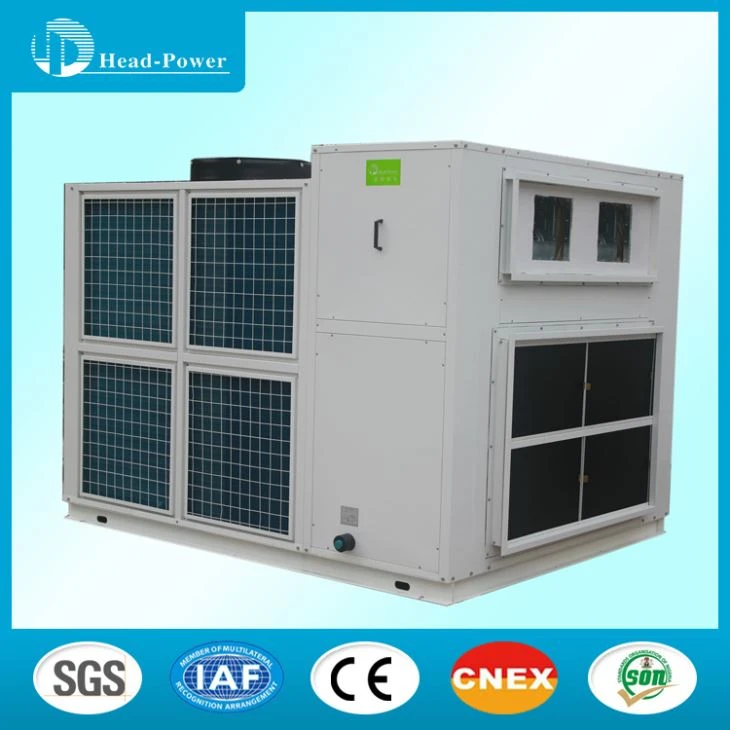

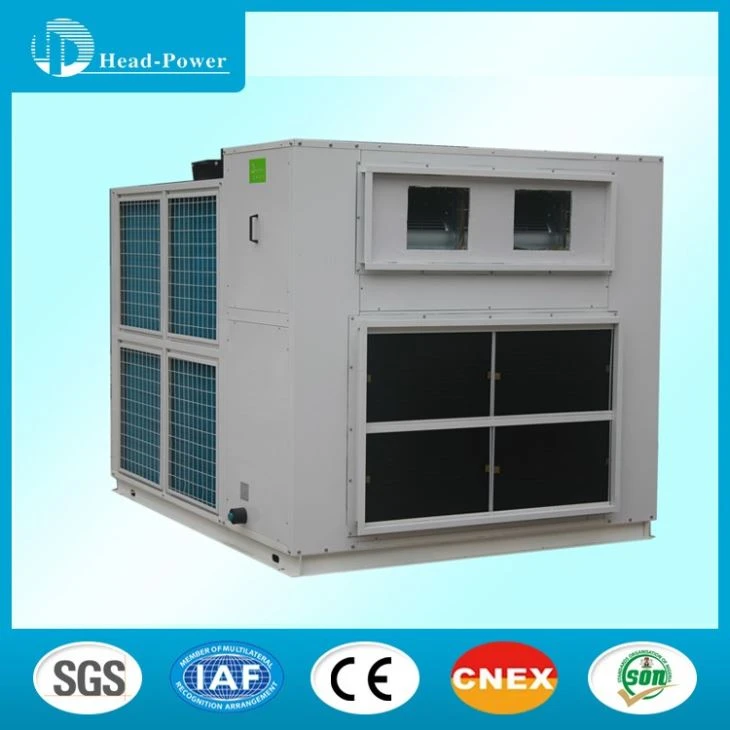

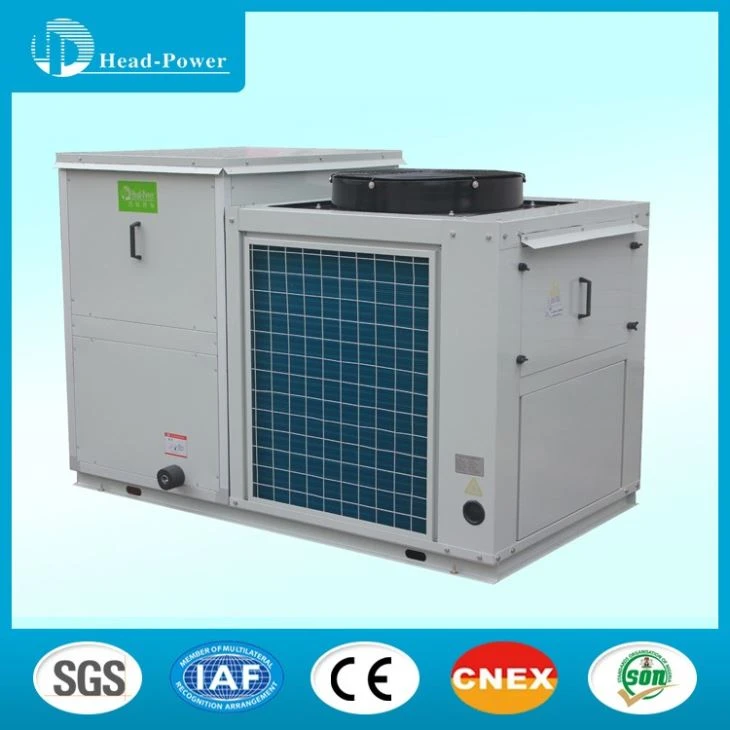

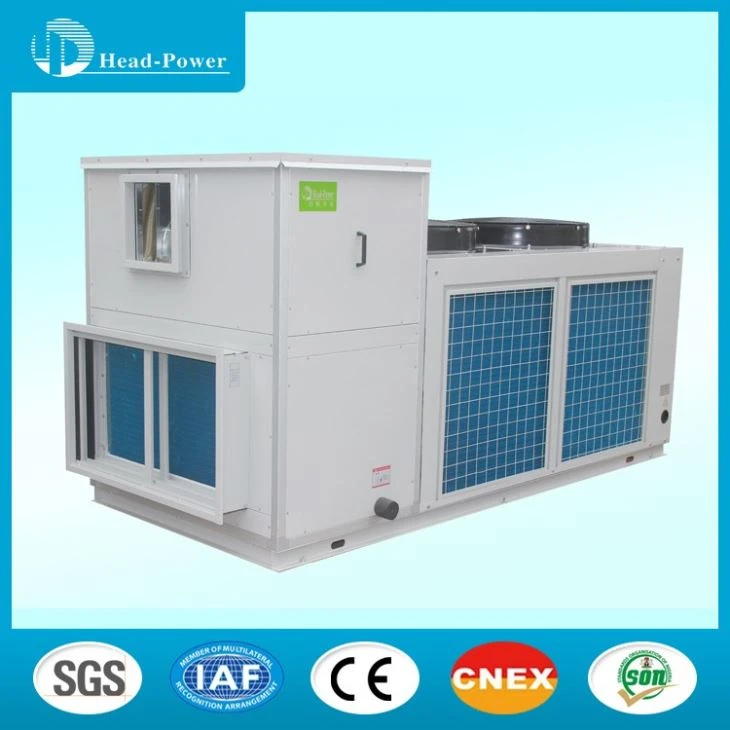

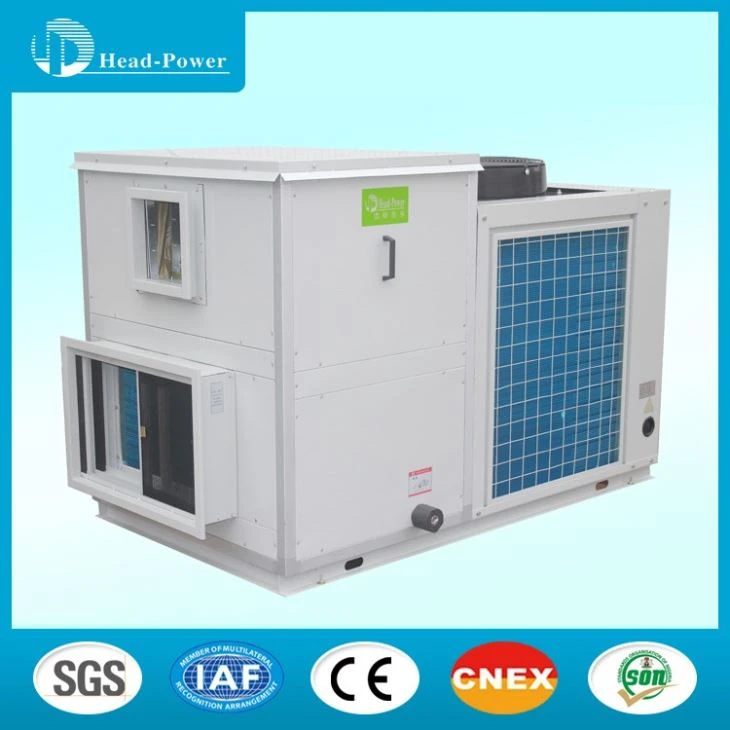

Air-cooled Heat Pump Rooftop Package Unit

Rooftop Packaged Air Conditioners are completely assembled, internally wired, charged with R22/R407c/R410a/R134a refrigerant at factory, tested before ship and ready for installation. All that is required on site is connecting ducting and power supply. This greatly reduces installation work and cost. They are designed for ducted systems which will enable them to be installed on rooftop or on the ground.

Send Inquiry

Chat Now

1. Air-cooled Heat Pump Rooftop Package Unit immediate operability: quick start-up is assured once installation is complete.

2. Air-cooled Heat Pump Rooftop Package Unit high efficiency: thanks to the anti-vibration mounting scroll compressors.

3. Air-cooled Heat Pump Rooftop Package Unit intelligent control: parameters of unit are monitored and adjusted by microcomputer system.

4. Quiet operation: with low-noise fan motor and hermetic scroll compressor with sound insulation system.

5. Safety and reliability: complete unit control function, multi protection, safe and reliable operation.

6. Weather proof: polyester epoxy power electrostatic paint oven-baked finish for sheet metal and multi epoxy polyester coating for base frame fro maximum protection.

Technical specification:

Rooftop Packaged Unit
Model No.	WK
Unit Performance	Cooling capacity	kW	13~300
Air flow	m3/h	3000~50000
External static pressure	Pa	150~1000
Power supply		220/380/460V-3N-50/60Hz
Refrigerant System	Refrigerant		R22/R407c/R410a/R134a
Compressor	Type		Hermetic scroll compressor
Power	kW	4~87
Evaporator	Type		Copper tubes with aluminum fins
Condenser	Type		Copper tubes with aluminum fins
Air supply system	Condenser fan	Type		Ultra-low noise axial type
Drive method		Direct drive
Motor power	kW	0.37~15.4
Evaporator fan	Type		Double-inlet centrifugal
Drive method		Belt drive
Motor power	kW	0.55~22.5
