Name: 40ton Dx Packaged Outdoor Aircondition
Brand: headpower
SKU: 106009802

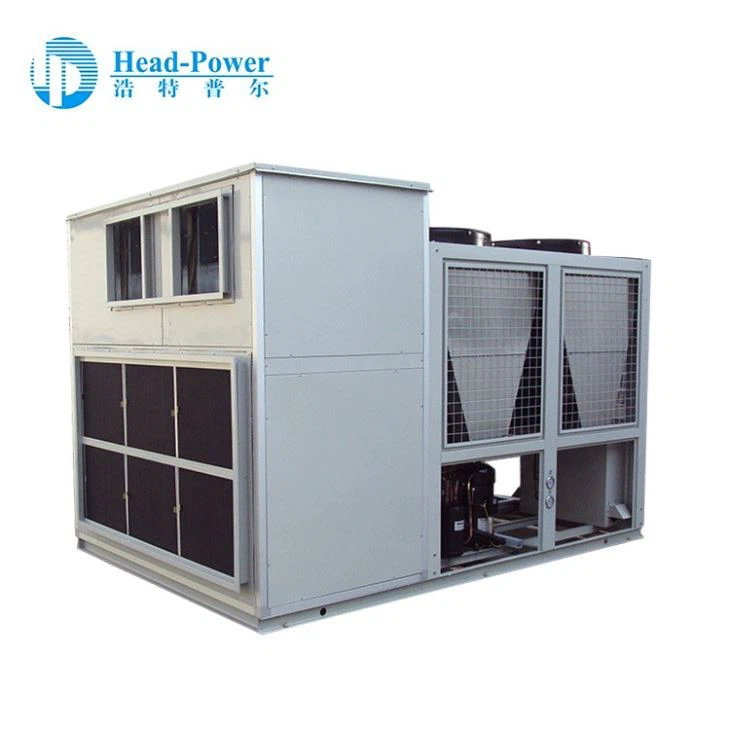

40ton Dx Packaged Outdoor Aircondition

Commercial Package Air Conditioners; Your customers deserve comfortable cool air at all times – the best way to deliver that is to choose a headpower commercial package AC. Browse our entire product offering below, and reach out if you have any questions – we’re here to help!

Send Inquiry

Chat Now

rooftop details//40ton Dx Packaged Outdoor Aircondition

scroll compressors

Tandem compressors configuration allows the unit to operate at partial load (only with one compressor) with higher efficiency and increases the working range up to +52°C ambient temperature

V-Coils

Made in blue fin (or in copper for harsh conditions under special request), increases the heat exchange surface for a given rooftop footprint. The floor pan is sloped for easy condensates drainage.

the vedio of 40ton dx packaged outdoor aircondition as below:

40ton Dx Packaged Outdoor Aircondition
Model No.		WKL50
Unit Performance	Cooling capacity	ton	40
Air flow	m3/h	20000
External static pressure	Pa	350
Noise level	dB(A)	78
Power supply		3PH~50HZ 380V
Refrigerant System	Refrigerant		R410a
Compressor	Type		scroll compressor
brand		copeland
qty		2
Power	kW	18*2
Evaporator	Type		Copper tubes with aluminium fins
Condenser	Type		Copper tubes with aluminium fins
Air supply system	Condenser fan	Type		Ultra-low noise axial type
Drive method		Direct drive
Motor power	kW	1.8*2
Evaporator fan	Type		Double-inlet centrifugal type
Drive method		Belt drive
Motor power	kW	7.5
Unit dimensions	LWH	mm	280021502400
Net weight	kg	1800
