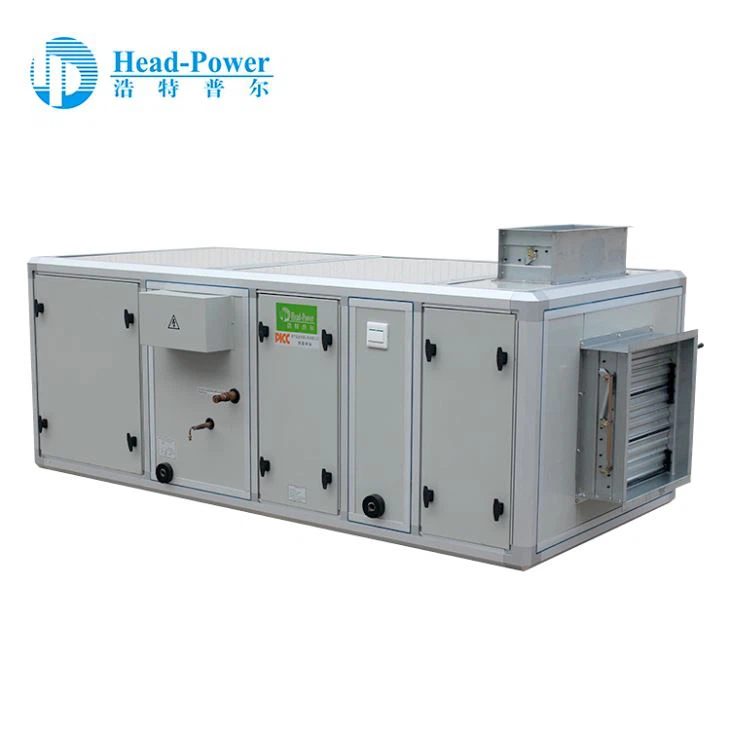

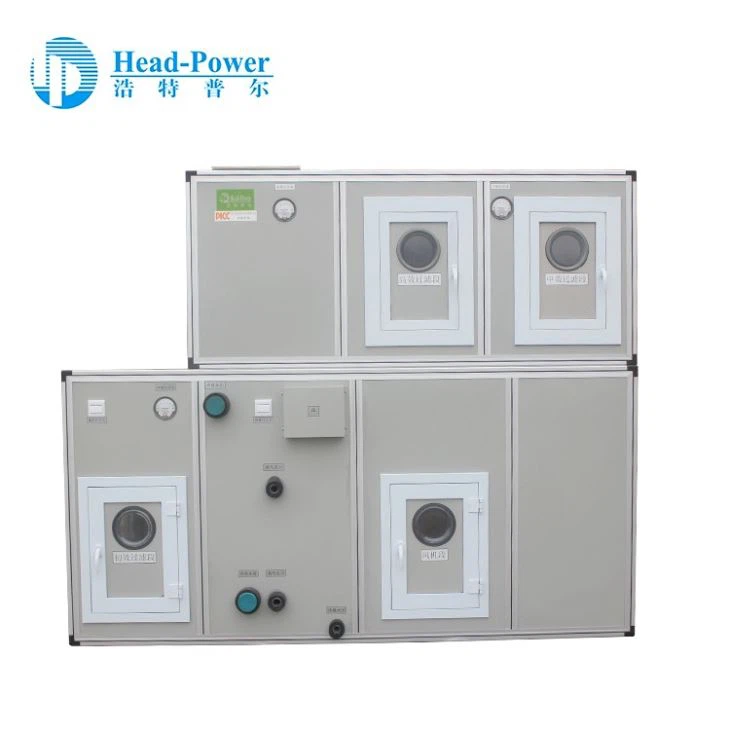

1) Industry Indoor Air Handling Unit can be customized different funtions in it.
2) Fans and motors are from leading manufacturer.
3) Industry Indoor Air Handling Unit can be forward, Backward inclined and Aero Foil Fans are available for specific fan application; Fan assembly framework with adjustable motor base for proper fan belt tension adjustment; Spring isolator for .
4) Fan Assembly Frame is special non defective type for protection of vigorous transportation.
5) Industry Indoor Air Handling Unit can be VFD (OPTIONAL)
Technical specification:
Heat Pump Heat Recovery Air Handling Unit | |||
Model No. | HAX | ||
Nominal cooling capacity | kW | 9-216 | |
Nominal heating capacity | kW | 9.5-224 | |
Power supply | 220V-460V/3PH/50Hz-Hz | ||
Refrigerant | R22/R407c/R410a/R134a | ||
Compressor | Type | Hermetic Scroll | |
Power | kW | 1.7-36 | |
Exhaust air system | Air volume | m3/h | 1500-36000 |
ESP. | Pa | 100-550 | |
Motor power | kW | 0.55-15 | |
Fresh air system | Air volume | m3/h | 1000-20000 |
ESP. | Pa | 80-480 | |
Motor power | kW | 0.2-5.5 | |
Heat exchange efficiency | >87% | ||
Noise level | dB(A) | 48-68 | |
Dimensions | L*W*H | mm | 2000x1500x850 |
Net weight | kg | 380-1700 | |






FAQ:
Q1: Is it possible to make our logo on the product?
A1: Yes, OEM is available,including special style,color,logo,packing etc.
Q2: What's the terms of delivery?
A2: EXW, FOB, CFR, CIF.
Q3:How about the quality of your product?
A3: Our products strictly manufatured according to national and international standard. We got ISO quality and CE,CCS,SGS…etc.
Q4:What types of payment do you accept?
A4:We accept T/T, L/C, more pay channels are open. 30% Deposit, 70% balance should be paid before shipment.
