Product features:

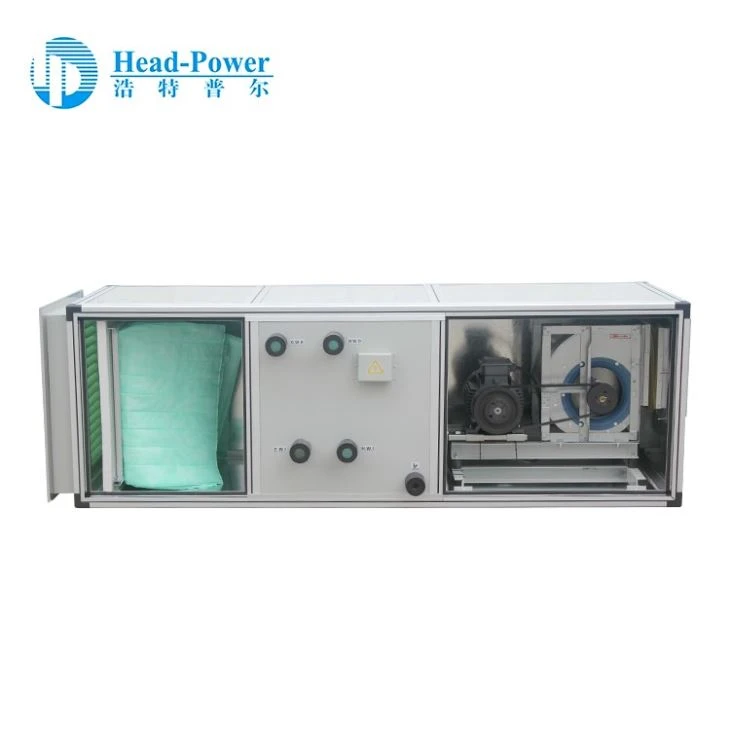

Evaporative dx customized split ahu designed for industrial applications and clean rooms.
(plastics processing, automobile and pharmaceutical industries, laboratiories, hospital sector, microelectronics). The range covers all air handling needs and features the latest technological developments in terms of ultra-cleanliess.
1) Mount type: Ceiling / Vertical / Horizontal /Modular.
2) Double-skin casing with 50mm and air leakage proof design, embeded groove making foam material connect both internal and external panels tightly.
3) Evaporative dx customized split ahu, the doors with metal fittings equipped with handles, slow closing on the exterior, completely smooth one the interior.
4) Air filter: G4 to H13 efficiency filters and activated carbon molecular filtration solution with several technology options: compact, rigid dihedral, flexible bags. International standard size cells for easy maintenance or specific dimensions for energy optimisation.
5) The heat exchange pipe of the heater is made of stainless steel, smooth surface, without spiral fin, Preventing accumulation of dust and breeding of bacteria.
6) Evaporative dx customized split ahu use electrode and dry steam to humidify, avoiding the humidified circumstance to keep from the breeding of bacteria.
7) Plug fans with high-efficiency airfoil blades and internal flexible connection sleeve with air flow control.
Product description:
Evaporative dx customized split ahu | |||
Model No. | HAX | ||
Nominal cooling capacity | kW | 9-216 | |
Nominal heating capacity | kW | 9.5-224 | |
Power supply | 220V-460V/3PH/50Hz-Hz | ||
Refrigerant | R22/R407c/R410a/R134a | ||
Compressor | Type | Hermetic Scroll | |
Power | kW | 1.7-36 | |
Exhaust air system | Air volume | m3/h | 1500-33000 |
ESP. | Pa | 100-550 | |
Motor power | kW | 0.55-15 | |
Fresh air system | Air volume | m3/h | 1000-20000 |
ESP. | Pa | 80-480 | |
Motor power | kW | 0.2-5.5 | |
Heat exchange efficiency | ＞87% | ||
Noise level | dB(A) | 48-68 | |
Dimensions | L*W*H | mm | 2000x1500x850 |
Net weight | kg | 380-1700 | |
FAQ:
Q1: OEM provided?
A1: Yes, OEM and ODM is available. Customized.
Q2: Are you a manufacturer or trading company?
A2: We are a manufacturer which specialized in produce HVAC product since 2001.
Q3：How to choose a suitable machine?
A3: Tell us about your machine USES, we have professional designers will resolve for you.
Q4：What types of payment do you accept?
A4：We accept T/T, L/C, more pay channels are open. 30% Deposit, 70% balance should be paid before shipment.
