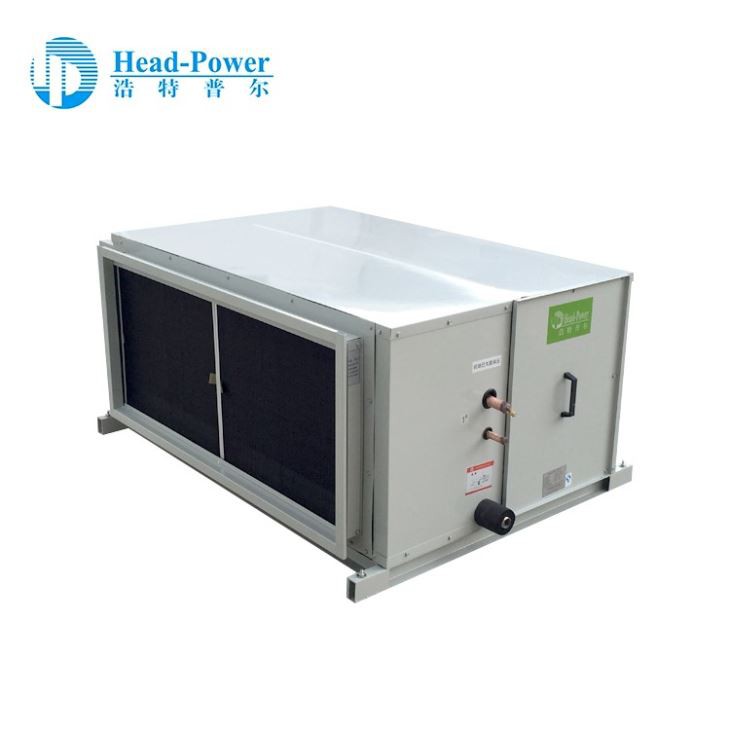

T3 Tropical Climate Split Air Conditioner

The split air conditioners are endowed with numberous merits such as high energy efficiency ratio, low noise, high static pressure, high control precision,safety, reliability, low vibration,high sealing property, excellent resistance agianst corrosion, rain, dust as well as easy installation and graceful appereance etc.

Send Inquiry

Chat Now

Product features:

1. T3 Tropical Climate Split Air Conditioner ainly composed of compressor, condenser, direct evaporator, expansion valve, fan and so on.
2. T3 Tropical Climate Split Air Conditioner is equipped with full hermetic refrigeration compressor of world-famous brand.
3. Key controlling parts are imported name brand
4. Condener applies aluminum cooper tube,B10/B30 cooper nickel tube with high corrosion resistance and uses special structure, it can protect ship swing from flow-stop
5. Pressure test, vacuum test and running test have been done before leaving factory
6. T3 Tropical Climate Split Air Conditioner match proper direct end device to form a full system
7. Design, manufacture and inspection of this series of product as per user's requirement

Product description:

T3 Tropical Climate Split Air Conditioner
Indoor Model No.	HAM / HAD / HAL
Unit Performance	Cooling Capacity	kW	7.8~250
Air Flow	m³/h	1350~35000
Power Supply		220V/380V/415V/440V-3N-50Hz/60Hz
Refrigerant		R22/R407c/R410a/R134a
Indoor Unit	Evaporator		Copper tubes with aluminum fins
Fan and Motor	Fan Type		Ultra-low-noise Centrifugal
Power	kW	0.3~20
Start Method	Direct-drive
Connecting Method		Flare opening
Outdoor Model No.	SW
Outdoor Unit	Compressor	Type	Hermetic scroll compressor
Power	kW	2.25~72
Condenser Type		Copper tubes with aluminum fins
Condenser Fan	Type		Ultra-low Axial fan
Power	kW	0.37~8.8
Connecting Copper Tubes	Gas tubes	Size(mm)	Φ19.1/Φ28
Quantity	1~8
Liquid tubes	Size(mm)	Φ12.7/Φ15.9
Quantity	1~8
Connecting Method		Flare opening
