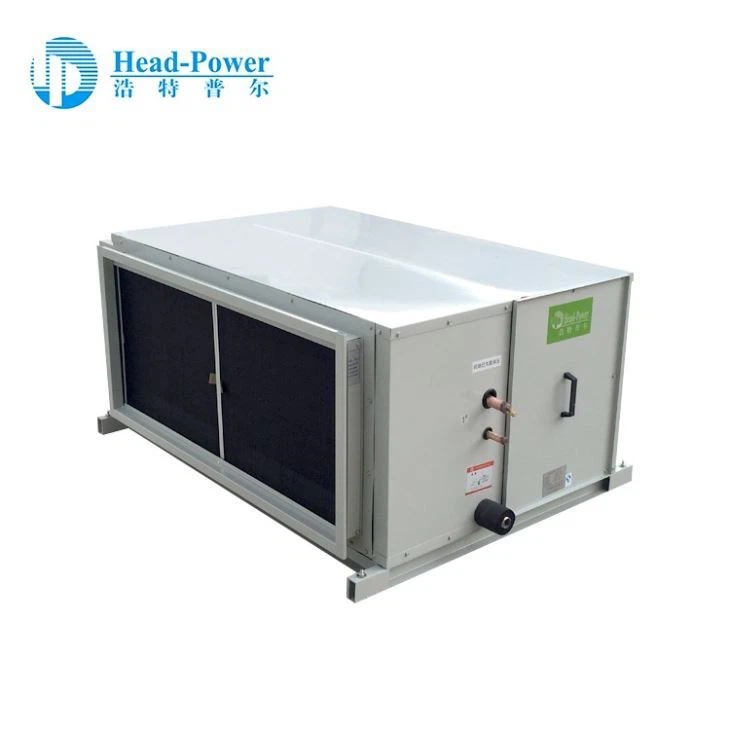

Ducted type split aircooled unit
Ducted type split aircooled unit

Ducted type split aircooled unit

Many kinds of power supply system as options. Selection of international brand components, reliable quality, low failure rate. Adopt a variety of ways to air supply, direct air supply or duct air supply. 8 kinds safety protection functions, automatic detection, fault analysis function. Optional intelligent network centralized control system, can control 32 sets equipment at the same time
Send Inquiry
Chat Now

Product feature:

Ducted type split aircooled unit adopt  the latest environmentally friendly refrigerants,

in line with the European environmental protection standards.


--Many kinds of power supply system as options


--Selection of international brand components, reliable quality, low failure rate


--Ducted type split aircooled unit adopt a variety of ways to air supply, direct air supply or

   duct air supply


--8 kinds safety protection functions, automatic detection, fault analysis function


--Ducted type split aircooled unit optional intelligent network centralized control system,

   can control 32 sets equipment at the same time




Technical specification:


                                                                 Air Cooled Split Air Conditioner

Indoor Model No.

HAM / HAD / HAL



Unit Performance

Cooling Capacity

kW

7.8~250

Air Flow

m3/h

1350~35000


Power Supply


220V/380V/415V/440V-3N-50Hz/60Hz


Refrigerant


R22/R407c/R410a/R134a


Indoor Unit

Evaporator


Copper tubes with aluminum fins

Fan and Motor

Fan Type


Ultra-low-noise Centrifugal

Power

kW

0.3~20


Start Method

Direct-drive



Connecting Method


Flare opening


Outdoor Model No.

SW



Outdoor Unit

Compressor

Type

Hermetic scroll compressor

Power

kW

2.25~72


Condenser Type


Copper tubes with aluminum fins


Condenser Fan

Type


Ultra-low Axial fan

Power

kW

0.37~8.8


  Connecting Copper   Tubes

Gas tubes

Size(mm)

Φ19.1/Φ28

Quantity

1~8



Liquid tubes

Size(mm)

Φ12.7/Φ15.9


Quantity

1~8



Connecting Method


Flare opening





aircon split type 20hp

ac 15 ton split


5 ton split air conditioner


	 split duct air conditioning system


FAQ:


Q1:What is your company's after-sales service?

A1:Our warranty period is one year. If there is any problem in this year, we will send you the new parts for replacement. Meanwhile, welcome to consulting the technical knowledge.


Q2:OEM provided?

A2:Yes, OEM and ODM is available. Customized.


Q3:What's the terms of delivery?

A3:EXW, FOB, CFR, CIF.


Q4:How about the delivery time?

A4:About 30 days after the receipt of deposit and confirmation on all designs based of normal condition.
